Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Pineapple Press Tomato Mango Extract Pulp Pulper Coconut Milk Fruit Juice Extractor Machine
Specifications
Brand Name :
qj
Place of Origin :
shanghai
MOQ :
>>1
Price :
$20000-100000/unit
Payment Terms :
T/T, L/C
Delivery Time :
45days
Packaging Details :
international package of your request
Certification :
CE
Voltage :
220V/380V
Automatic grade :
Automatic
Condition :
New
Application :
Beverage
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Capacity :
by order
Material :
SUS304/316
Description

Introduction:

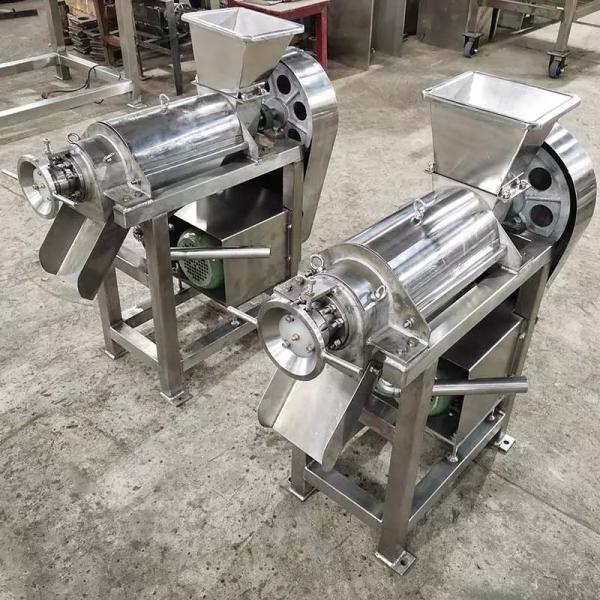

The main component of the device is a spiral. The diameter of the spiral gradually increases along the direction of the slag outlet and the pitch gradually decreases. When the material is propelled by the spiral,the volume of the spiral cavity is reduced to form a squeeze of the material and juice.The direction of rotation of the spiral main shaft is from the feed hopper to the slag groove direction, which is clockwise.The raw material is added to the feed hopper and pressed under the advancement of the spiral.The pressed juice flows through the filter into the bottom of the juicer, and the slag passes through the annular gap formed between the spiral and the tapered portion of the pressure regulating head. Discharge, the movement of the pressure regulating head in the axial direction can adjust the size of the gap. When turning the handwheel bearing seat clockwise by hand (from the slag sump of the equipment to the hopper end), the pressure regulating head is turned to the left, and the gap is reduced. Otherwise, the gap becomes larger. By changing the size of the pores, that is, adjusting the resistance of the slag, the juice rate can be changed.However, if the pores are too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.Although the juice yield increases, the quality of the juice decreases relatively. Therefore, the size of the pores should be determined according to the specific process requirements of the user.
Specification
Model
GD-0.5
GD-1.5
GD-2.5
Power(Kw)
1.5
4
11
Capacity(t/h)
0.5
1.5
2.5
Dimension(mm)
1080*340*900
1280*520*1340
1300*700*1520
Packing size(mm)
1160*440*920
1450*650*1200
1700*720*1600
NW(kg)
83
250
465
GW(kg)
102
310
578

Features:

1.This is a kind of spiral advancing extrusion. 2.There are whole stainless steel and inner stainless steel type. 3. It can make vegetable and fruit juice. 4.One outlet juice,one outlet fruit&vegetable pulp. 5.Processing material is vegetable&fruit which is crushed into not more than 2*2cm size. 6.We can supply you with different Filter screens according to your needs on the hole Diameter.
