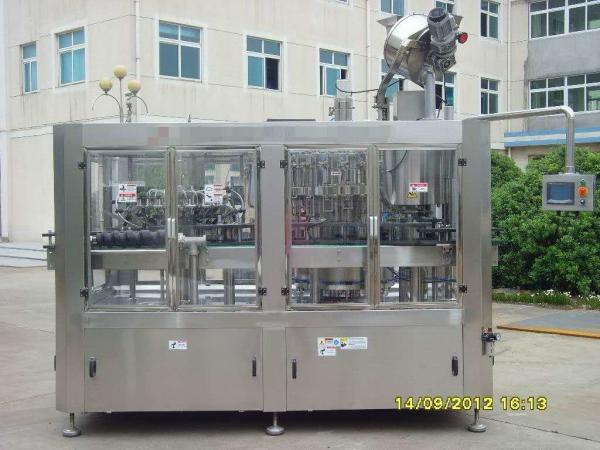

Glass Bottle Food Processing Equipment Complete Beverage Production Line
Glass Bottle Food Processing Equipment Complete Beverage Production Line
Glass Bottle Food Processing Equipment Complete Beverage Production Line
Glass Bottle Food Processing Equipment Complete Beverage Production Line
Glass Bottle Food Processing Equipment Complete Beverage Production Line
Glass Bottle Food Processing Equipment Complete Beverage Production Line
Specifications
Brand Name :
YGT
Model Number :
YGT-BP
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
20000-40000usd
Payment Terms :
T/T
Supply Ability :
20 sets per momnth
Delivery Time :
35 working days
Packaging Details :
wooden case
Voltage :
380V/50HZ
Warranty :
1 Year
Material :
SS304/SS316L
Condition :
New
Name :
beverage bottle filling line
Function :
filling
Capacity :
4000-6000bph
Description

Application:
This machine is designed for small capacity wine factory and big company make many
different kinds of wine as sample, because it is suitable for kinds of glass bottle filling,
like square bottle, round bottle,flat bottles and so on.

Main Features

1.The filling line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.
3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.

Matched equpment system

0. pretreatment(blending-sterilizer-holding tank)

1, conveyor

2, cap elevator
3, vaccuum pump
4, feeding pump

5. labeling machine

6. Package machine

7. Ink coder

Parameter for our filling machine :

Model YGT12/12/4 YGT18/18/6 YGT24/24/6 YGT32/32/8
Production capacity(500ml) 1000-1200B/H 2000-3000B/H 4000-5000B/H 7000-8000B/H
Total power 1.5Kw 1.5Kw 3.75Kw 5.6Kw
Weight 2000Kg 2400Kg 3000Kg 3500Kg
Overall dimension 1700x1100x2300mm 1830x1320x2300mm 1950x1580x2500mm 2100x1850x2500mm
