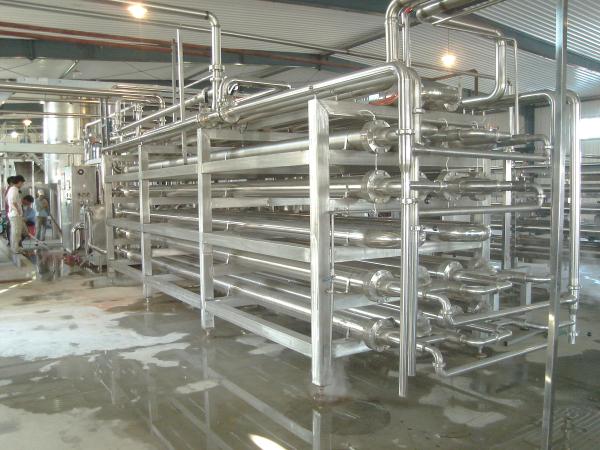

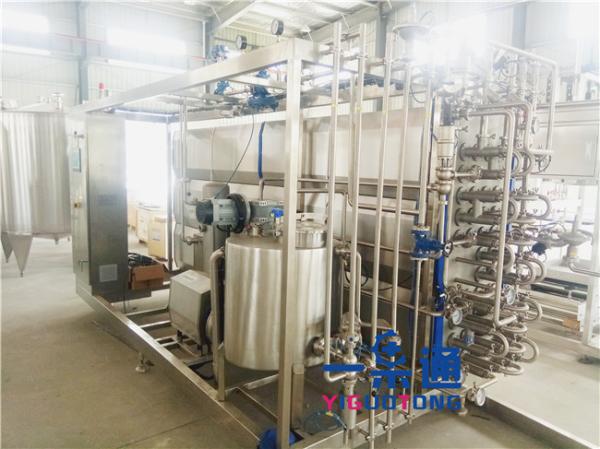

Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk
Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk
Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk
Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk
Specifications
Brand Name :
YGT
Model Number :
YGT-UHT
Certification :
SGS,ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10SETS/MOUTH
Delivery Time :
30 working days
Packaging Details :
WOODEN BOX
Material :
Stainless Steel
Type :
Tubular sterilization machine
Usage :
Beverage,Juice,Tea, sterilization
Control system :
Automatic
Capacity :
3T/h
Voltage :
380V/220V
Description

Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk

Tubular heat exchanger,materials as well as heat exchange medium all the state of turbulence to create high heat exchanging rate,reduce the formation of scaling,and therefore,lengthen the continuous working time of sterilization equipment.

Tubular sterilization machine

type and

specification

capacity

(t/h)

steam

consumption

(kg/h)

steam

pressure

(kg)

power

(kw)

dimension

l*h*d

weight

(kg)

 diameter(mm)
material steam medium
YGT-UHT-CH-1MJ 1 120 6.0 2.8 3.3×1.8×2.0 1680 25 1" 25
YGT-UHT-CH-2MJ 2 240 6.0 3.0 3.5×1.8×2.0 1780 25 1" 25
YGT-UHT-CH-3MJ 3 360 6.0 3.7 3.5×1.8×2.0 1900 38 DN32 38
YGT-UHT-CH-4MJ 4 480 6.0 3.7 3.5×1.8×2.0 2060 38 DN40 38
YGT-UHT-CH-5MJ 5 600 6.0 3.7 3.5×1.8×2.0 2200 38 DN40 38
YGT-UHT-CH-6MJ 6 720 6.0 3.7 3.5×1.8×2.0 2360 51 DN50 51
YGT-UHT-CH-8MJ 8 960 6.0 4.4 3.5×2.0×2.2 2520 51 DN50 51
YGT-UHT-CH-10MJ 10 1200 6.0 7.0 3.5×2.0×2.2 2780 51 DN60 51
YGT-UHT-CH-15MJ 15 1800 6.0 8.0 3.5×2.0×2.2 3020 63 DN65 63
YGT-UHT-CH-20MJ 20 2400 6.0 11.0 3.5×2.0×2.2 3300 63 DN80 63
Process:30℃→140℃(4s)→90℃→(40℃return) (Cooling water)1:2≤30℃

Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk

Tubular Ultra High Temperature Sterilization Pasteurizer Machine For Fresh Milk
