S1312SE wireless door touch sensor, 50*40*11.5, 3-3.3v, <60mW, sensor distance around 1-3cm

Overview

S1312SE wireless door touch remote control switch adopts 2.4GHz wireless RF control mode, which can be matched with our control box to realize wireless control function of lamps and lanterns. Adopting replaceable CR2450 button battery, the wireless control box can control 10M distance in the open occasion. The appearance is neat and elegant, light and beautiful; using advanced low-power chip, long standby time; this product has the advantages of environmental protection and energy saving, easy to use, no wiring, etc. It is an excellent solution for furniture LED lighting control.

Characteristics

1. Switch the switch of the lighting fixture by opening and closing the door panel;
2. Use our company's control box to achieve wireless control of the lighting fixtures;
3. Advanced low-power chips with long standby time;
4. Environmental protection and energy saving, easy to use, no need for wiring;
5. Adopting 2.4GHz wireless RF control method.

Wireless switch code pairing, code clearing and learning operation

The wireless remote control needs to be operated in the following way with our control box to realize the matching use of transmitter and receiver.

Pair code method:

Connect the luminaire with smart power supply or control box and then power on the device. Within 30S, press and hold the code key of the remote control, when the luminaire will flash 3 times, it means the code is successful and the remote control can control this group of luminaire.

Clear code mode:

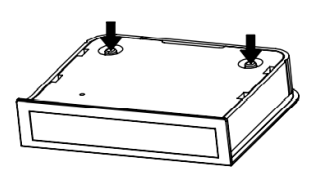

5S before the receiver is powered on, press the code key and clear code key at the same time for about 5S, the light flashes 3 times, then the clear code is successful; the remote control can no longer control this receiver.

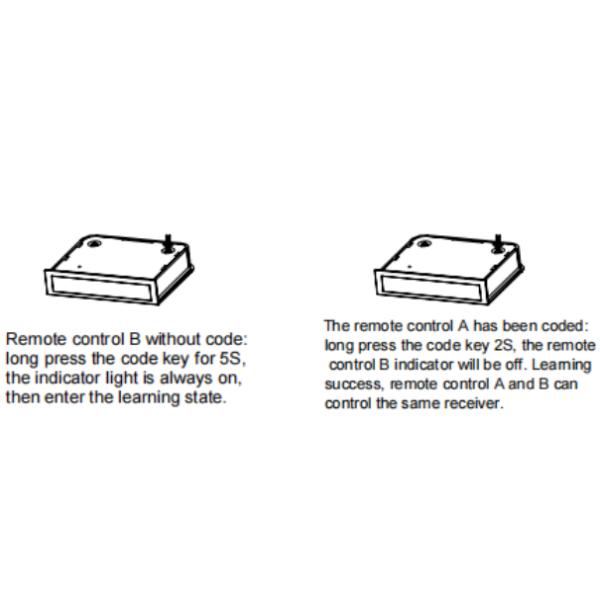

The way to learn between remote control and remote control
