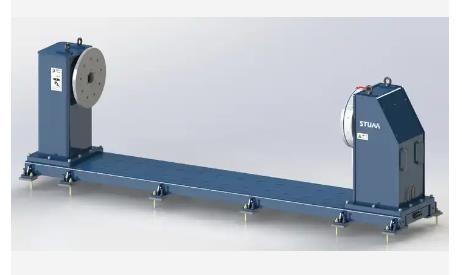

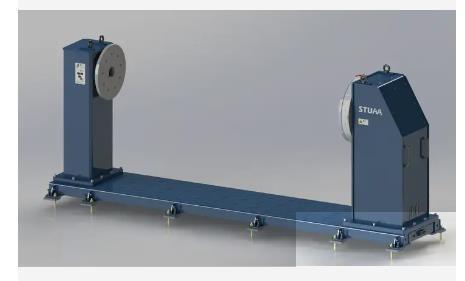

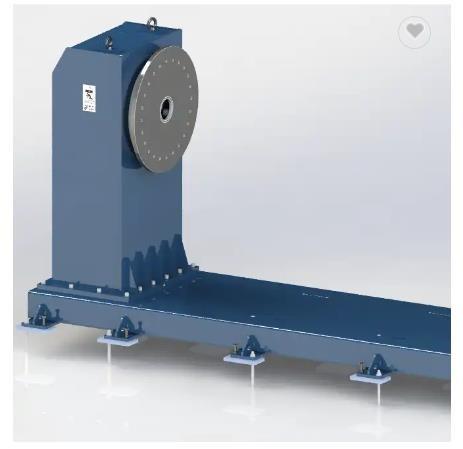

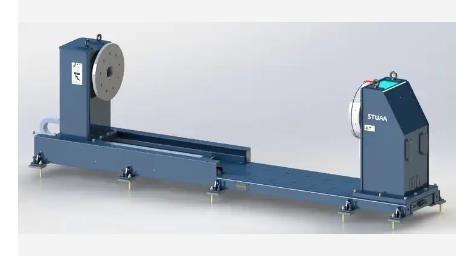

Turn Table Head and Tail Frame Welding Positioner High Performance 10kg Welding Positioner for Sale

What is a robot assisted locator?
Robot assisted locator (workpiece locator) is a programmable mechanical device equipped with one or more external axes that can work synchronously with an industrial robot to expand its performance. The workpiece will be placed on the locator and can be independently controlled to enhance the flexibility of the robot.

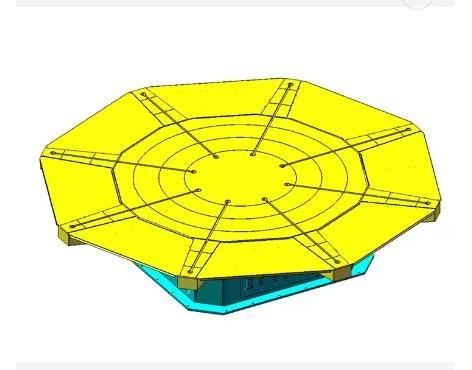

Auxiliary locators come in many different sizes, types, and configurations to choose from, from the simplest, single axis turntable to the most complex multi axis combination.
The basic purpose of the workpiece locator is to expand the working range of the robot. This is a bit like other auxiliary external axes - robots are placed on a linear axis, crankshaft, or truss. However, unlike the auxiliary outer axis, the workpiece itself is the moving part, not the robot.

Is your application suitable for equipping with robot assisted locators?
When considering whether a robot assisted locator is needed, the first question to consider is whether your robot application is suitable for equipped with such a device. After all, there are many robot applications that do not require additional degrees of freedom, and relying solely on the robot's own degrees of freedom is sufficient to perform job tasks.
The best way is to ask myself: Will my application be limited by the working range of the robot? If the answer is yes, then you can consider configuring a locator (or other auxiliary outer shaft) that meets the requirements.
The most common applications that require the use of locators are robot welding and robot machining. In these tasks, the robot's six degrees of freedom are used to accurately operate the tool, leaving little room for it to touch the workpiece from other directions. At this point, when the welded or machined parts have more complex geometric shapes, auxiliary locators are usually necessary.

MIG/MAG/TIG/Plasma/Laser Welding stations
Flame/Plasma/Laser/Water-jet Cutting stations
Customized heavy industrial positioner systems
Industrial fencing and protection
High precision welding positioners (in conjunction with mainstream robotic brands)

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Product parameters table

Packaging and Transportation
