Pipe packages for transporting welding high loads and high intensity sports

Product Features

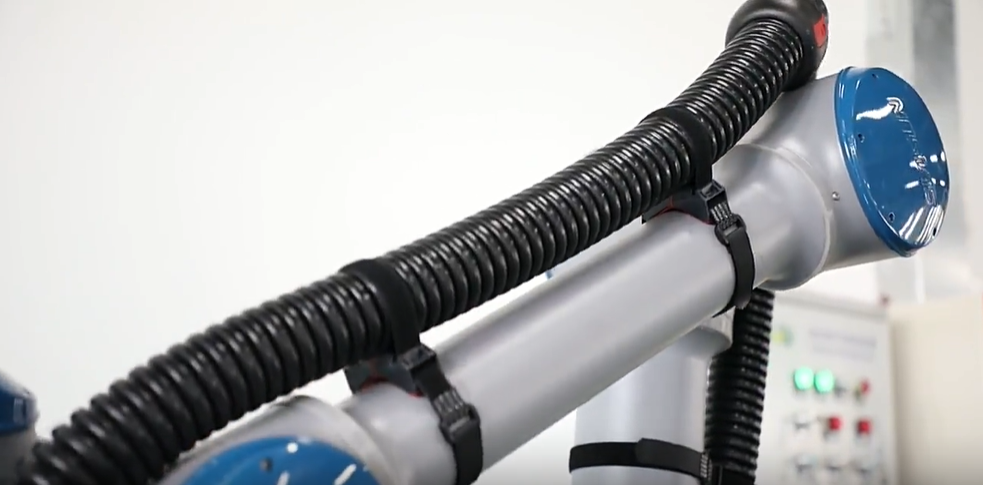

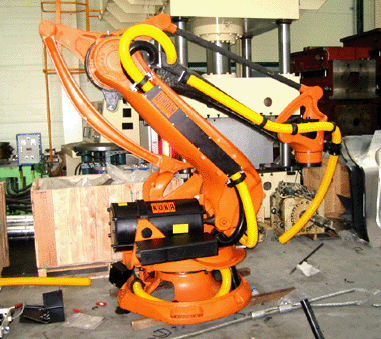

The cable protection hose developed for robot applications can withstand extremely high loads and high-strength applications, and has a unique mechanical structure. In extreme bending situations, it can always maintain the original shape and compressive performance of the hose, effectively protecting the internal pipelines and extending the service life of the pipe package.

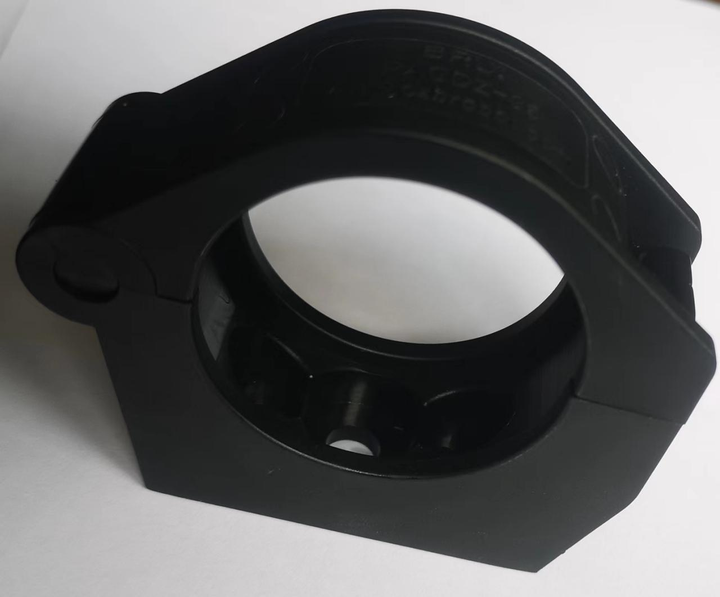

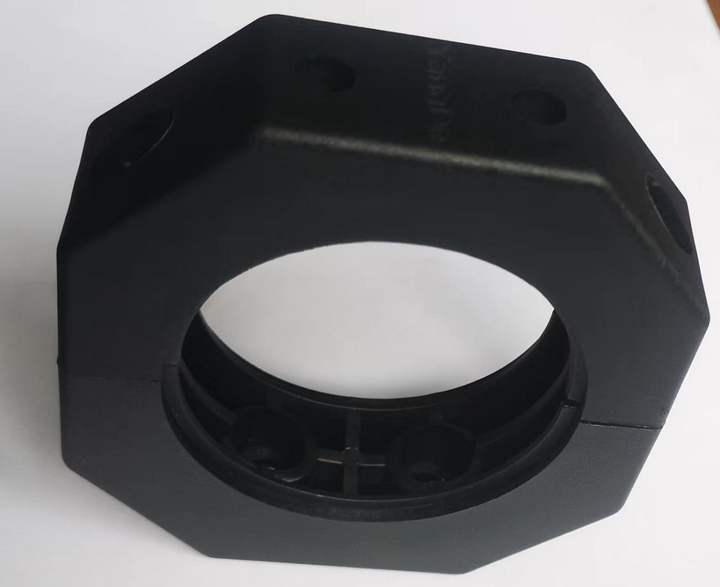

The carefully designed support components allow the robot to move freely in high-speed and fine reciprocating motion, and by providing safe and reliable fixation technology, it can meet the requirements of flexible and mobile operation of the robot.

Excellent raw materials Higher product performance

The materials of specially modified polyamide 12 and thermoplastic polyimide resin are more flexible and resilient, with strong resilience, friction resistance, and a smooth and scratch free surface. The corrugated structure increases tensile strength, is not easy to break or deform, and is suitable for dynamic flexible hose laying and fixation in robots and automation systems when combined with fixed seats.

Good bending performance/ stable performance

The exterior has good aging resistance and UV resistance, good bending performance, smooth internal structure, and is easy to pass through when threading wires. Capable of withstanding heavy foot pressure, not breaking, unchanged in shape, able to quickly recover, and without any damage to itself.

Material: Advanced synthetic polyamide
Temperature range: -40C to+105C, short-term temperature:+160C

Halogen and cadmium free

FPUR/FPURV
Highly flexible,medium/ heovyduty
Produced from specially modified polyurethane.Conduit type with low mechanical strength, allowing verytight bending radius. Extreme flexibility and particularly goodchafing resistance (e.g. axes 5 and 6 in robotic installations)

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!

Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product related parameters

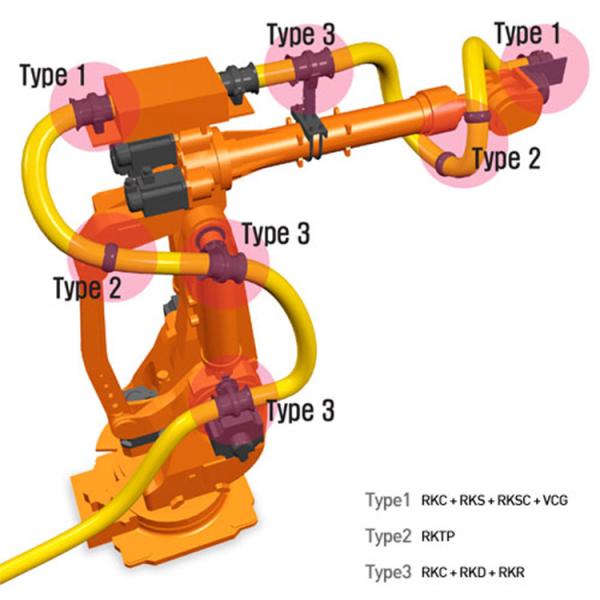

Product Plan Diagram

Packaging and Transportation
