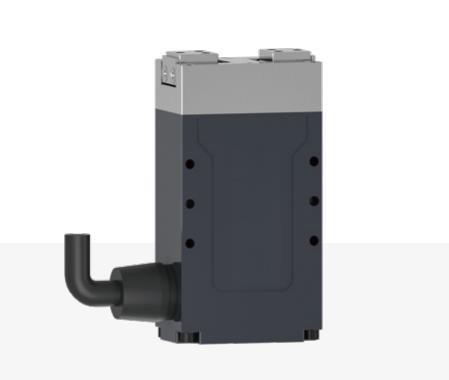

Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20
Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20
Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20
Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20
Specifications
Brand Name :
YOUNGYOU
Model Number :
EPG-M06-015
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1
Price :
800
Payment Terms :
L/C T/T
Supply Ability :
100 pieces/month
Delivery Time :
6-8 WEEKS
Packaging Details :
Independent packaging+carton packaging
Adjustable stroke :
0-6mm
Single finger clamping force :
6/15 N two speed adjustable
Opening/closing time :
0.2 s
Positional repeatability :
±0.02 mm
*Maximum recommended maximum load :
0.3 Kg
Body weight :
0.20 Kg
IP GRADE :
IP 20
Operating noise :
＜40 dB
Description

Robotic arm end effector Self-Adaptive GripperEPG-M06-015/weight:0.20kg/IP GRADE:IP 20

Product Introduction
The safety of electric grippers is a crucial aspect in production automation. In production automation lines, electric grippers undertake the important task of gripping and transporting items. If they do not have sufficient safety, they may pose a threat to the personal safety of workers and equipment. Therefore, when designing and manufacturing electric grippers, attention should be paid to their safety considerations, and professional safety clamping devices and control systems should be used to ensure the safety and reliability of the clamping process.
The safety clamping device of the electric gripper is very important. During the process of gripping items, the safety gripping device can ensure accurate control of gripping force and gripping position, preventing safety issues such as slipping, detachment, deviation, or impact during gripping and transmission. For example, when clamping circular items, using professional clamping fixtures can ensure that the items do not slip or slip during the gripping and transmission process. When clamping long items, using devices such as clamping springs, friction strips, and anti slip pads can effectively prevent problems such as tilting, falling, and falling of the items.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.


Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Order Code
EPG-M06-015-0L#-D1024-P20-A
Adjustable stroke 0-6 mm
Single finger clamping force 6/15 N two speed adjustable
Opening/closing time 0.2 s
Positional repeatability ±0.02 mm
Maximum load weight 0.3 Kg
Is it supported Support
Usage environment 5-40 ℃, below 85% RH
Operating noise ＜40 dB
Body weight 0.20 Kg
IP GRADE IP 20
Rated voltage DC 24±10% V
Maximum current 0.4 A
Rated current 0.2 A
Communication protocol
Digital I/O
Complies with international standards CE,RoHS
Vertical allowable static load Fz 150N
Allowable static moment of slider Mx 1.2 N·m
Allowable static moment of slider My 1 N·m
Allowable static moment Mz of slider 0.6 N·m

Product parameters table


Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20

Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20

Packaging and Transportation

Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20

Heavy Duty Robotic Arm Gripper End Effector Self Adaptive 0.20kg/IP GRADE IP20
