High Cycle Robot Linear Rail System Units For Spraying Industry Excellent Explosion Proof Guide Rails

Specifications

Brand Name :

YOUNGYOU

Model Number :

YY-01-01-W2500-002

Certification :

UL CE

Place of Origin :

China

MOQ :

Price :

2000$/m

Payment Terms :

L/C D/A

Supply Ability :

200SETS/MONTH

Delivery Time :

6-8 WEEKS

Packaging Details :

Foam fixation/carton packaging/wooden box fixation

Load :

2500kg

Acceleration :

1500mm/m²

Running Speed :

100-1250mm/S（Adjustable

Reduction Ratio :

1:10（Adjustable

Robot Arm Spread :

Within 2600mm

Overall Dimension :

W=700mm/H=350mm/L=effective Stroke Plus 1500mm

Installation Mode :

Horizontal Installation

Driving Mode(Driving Direction) :

One Axis（Unidirectional Reciprocating）

Power Supply Conditions :

Three Phase 380V±10/50HZ（We Can Supply Transformers）

Insulation Class :

HP64

Guide Rail Weight (in Meters) :

350kg/m

Key words :

Excellent explosion-proof performance

Description

Suitable for the spraying industry with excellent explosion-proof guide rails

PRODUCT DESCRIPTION

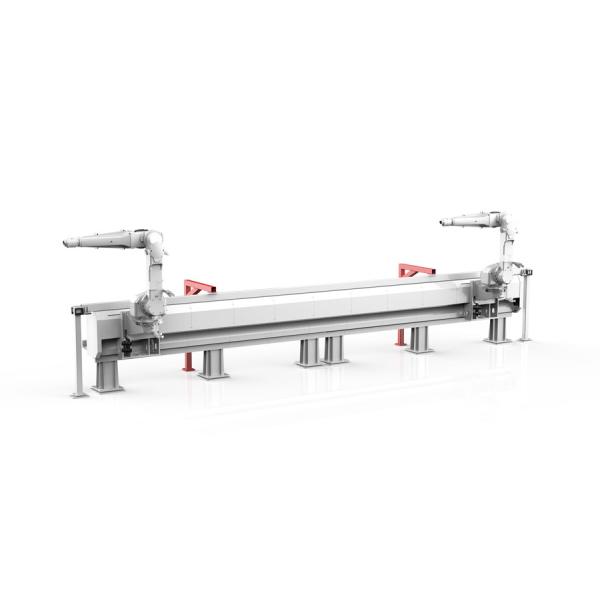

The spray guide rail series products can be configured with options such as the total length of the walking shaft crossbeam, the number of robots, and installation methods to meet differentiated needs, and have excellent explosion-proof and high protection.
The control is simple without additional motion controller, and the motion of the walking axis can be directly controlled by the robot controller.
The equipment is driven by a servo motor and transmitted through precision reducers and high-precision gear racks, with low noise, stable motion, and high repeated positioning accuracy.
Double protection with a cover and belt effectively prevents paint mist from invading the interior of the walking shaft, suitable for harsh spraying environments.
Modular design, simple structure, easy installation, low failure rate, and easy maintenance. Multiple series of trips, with customizable travel lengths up to 100m in total.

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.

The robots adapted to the guide rail include ABB IRB1200, IRB1410, IRB2600,IRB4600, IRB6700 and IRB7600 robots, KUKA's kr210, kr120, kr10, kr10, kr20, kr50 and kr70, FANUC M10, M20, m710, M1000 and M2000, Yaskawa GP7, GP8, GP12, GP25, AR2010, GP50, GP88, BA200l, GP255 PL900 and pl300.
Our robot guide rail is mainly composed of well-known brands such as Omron, THK and alpha in Germany. The guide rail has stable performance and low price.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
