Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
Specifications
Brand Name :
KUKA
Model Number :
LBR iiwa 14 R820
Certification :
CE
Place of Origin :
GERMANY
MOQ :
1
Price :
30000
Payment Terms :
L/C D/A
Supply Ability :
200SETS/MONTH
Delivery Time :
6-8 WEEKS
Packaging Details :
Foam fixation/carton packaging/wooden box fixation
Payload :
14kg
Farthest reachable distance :
820mm
Structure type :
Standard
Execution environment :
Standard
Installation position :
Ceiling/ floor/ wall
Protect :
IP54
Ambient temperature during operation :
5 °C to 45 °C (278 K to 318 K)
Pose repeatability (ISO 9283) :
0.15 mm
Key words :
Application of taking component reels
Weight :
29.9kg
Description

TApplication of LBR iiwa Lightweight Small Robot in Handling Component Reels

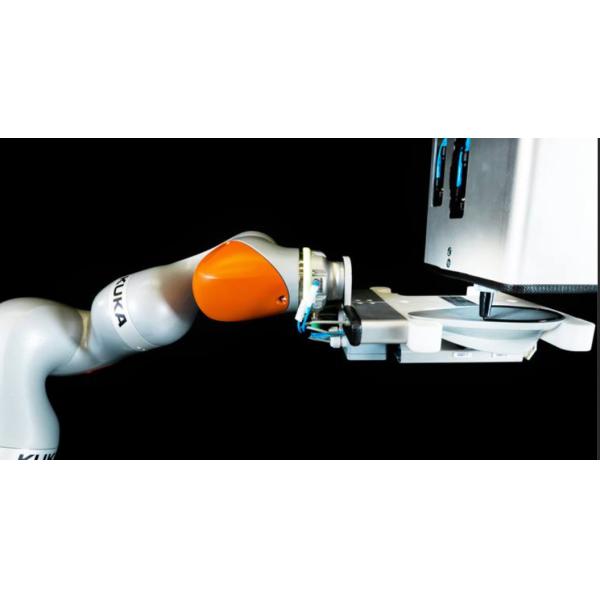

Fixed robot LBR iiwa takes component reels
When applied to the SMT production line in the pre assembly area, the replacement table must have already assembled component reels. The SIPLACE Material Settings Assistant will confirm the type of reel and initiate a query with the SIPLACE Material Manager, who will then automatically output the reel from the SIPLACE Material Tower, "Fritz explained. Remove the fixed LBR iiwa component reels and place them in the correct order into the component trolley. The basic prerequisite for robot operation is to be equipped with customized grippers in order to handle SMT component carrying reels. Due to the different diameters of each component reel and the varying thickness of the reel wall, which is prone to bending, LBR iiwa must be equipped with special grippers, "Fritz added.

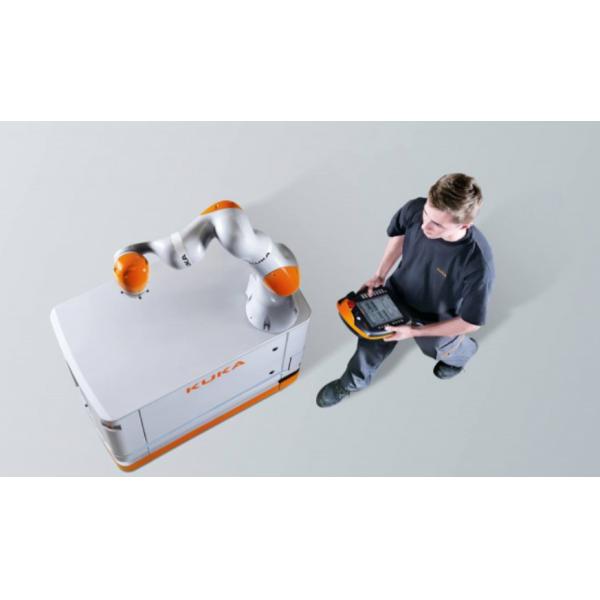

LBR iiwa is Kuka's first mass-produced sensitive lightweight robot and an industrial robot with human-machine collaboration capabilities.Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm

Company Product Supply

ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

11111self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touching.On the application display platform, LBR iiwa takes out the component reels from the SIPLACE tower and places them in the desired order into the component trolley. Sensitive lightweight robots do not need to protect space when interacting with humans. The display of two applications became a highlight at our internal technology exhibition held in November 2015, "said Bernhard Fritz, head of the SMT technology center at ASM Assembly Systems. The primary goal of applying robots is to improve productivity while ensuring high quality.self-adaption
Select from three operating modes and simulate programming for LBR iiwa: point out the desired position to the lightweight robot LBR iiwa - it will record the coordinates of the trajectory points. If you want to pause, you can easily pause and control it by touchin

Company Product Supply

ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China

Product parameters table

ITEM VALUE
Applicable Industries Applying/Painting/Glueing
Assembly
Handling
Human-robot collaboration
Machining
Measuring/Inspection
Palletizing/packaging
After Warranty Service Video technical support/ Online support/Global official after-sales service
Local Service Location Yes
Showroom Location Yes
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2023
Warranty of core components 1 Year
Core Components PLC, Motor
Brand Name KUKA
Weight 29.9kg
Technical service Video technical support/Online support/Global official after-sales service
Weight (KG) 29.9kg
Axis 7 axis
Payload 14kg
Reach 820mm
Manipulator during operation Standard
Maximum axis speed 85 °/s 85 °/s 100 °/s 75 °/s 130 °/s 135°/s 135 °/s
Repeatability ±0.15mm
Protection rating IP54
Temperature range
Ambient temperature during operation
5 °C to 45 °C (278 K to 318 K)

Ambient temperature during stor./transp.
0 °C to 45 °C (273 K to 318 K)

Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm

Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm

Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic ArmSmall Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm

Packaging and Transportation

Small Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic ArmSmall Kuka Robot Arm Cost LBR Iiwa In Handling Component Reels 7 Dof Robotic Arm
