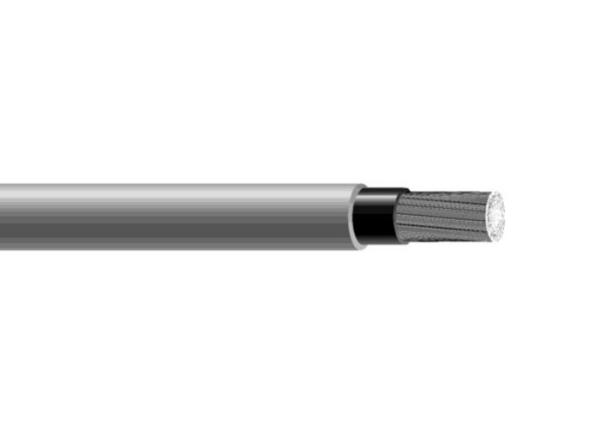

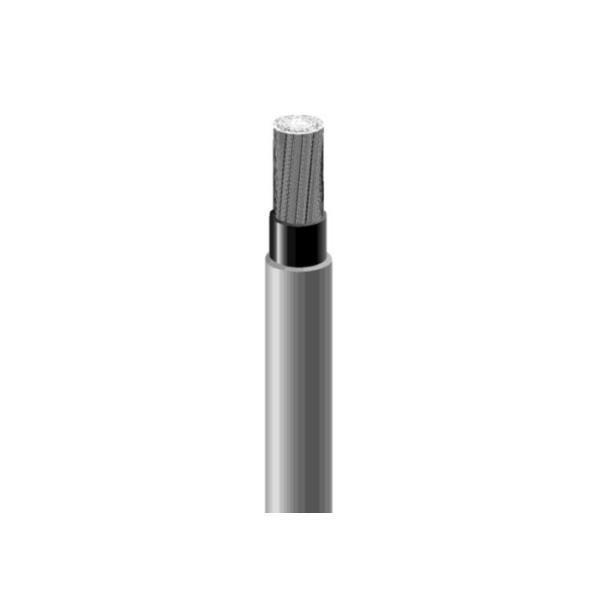

Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Annealed Bare Copper Single Core Special Power Cable TFL Power Cables
Specifications
Brand Name :
CN cable
Model Number :
TFL
Certification :
CE
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
20 days after payment
Packaging Details :
Roll , drum
Conductor :
Stranded, annealed bare copper, flexible
Insulation :
TPE, black
Jacket :
TPE, grey
Operating voltage :
0,6 / 1kV
Description

Use for communication stranded annealed bare copper single core TFL power cable

Application

Flexible, halogen free cable for connection of back-up batteries, central office power distribution or grounding.

Conductor

Stranded, annealed bare copper, flexible according to IEC 60228 class 5.

Insulation

Flame retardant TPE, black

Jacket

Flame retardant TPE, grey

Approvals

UL-listed, “Cable Tray Use”

Operating voltage

0,6 / 1kV

Operating temperature

Max 90 ºC

Fire resistance

IEC 60332-3 cat C UL 1685, Vertical Tray Flame Test

Technical Data

Conductors x size Diameter, nom. (mm) Weight/100m Resistance
Conductor Insulation Jacket (kg) (W/km)
1 x 25mm² (4 AWG) 7,2 10,0 12,8 35 0,780
1 x 35mm² (2 AWG) 7,8 10,6 13,4 45 0,554
1 x 50mm² (1 AWG) 9,5 12,3 15,1 60 0,386
1 x 70mm² (2/0 AWG) 11,0 13,8 16,7 77 0,272
1 x 95mm² (3/0 AWG) 12,5 15,7 18,9 102 0,206
1 x 150mm² (250 kcmil) 16,5 20,1 23,3 155 0,129
1 x 300mm² (500 kcmil) 23,0 27,9 31,8 313 0,064

Ordering Information

Conductors x size Length Total weight
(m) (kg)
1 x 25mm² (4 AWG) 500 200
1 x 35mm² (2 AWG) 500 250
1 x 50mm² (1 AWG) 500 324
1 x 70mm² (2/0 AWG) 500 413
1 x 95mm² (3/0 AWG) 500 593
1 x 150mm² (250 kcmil) 240 402
1 x 300mm² (500 kcmil) 250 898
