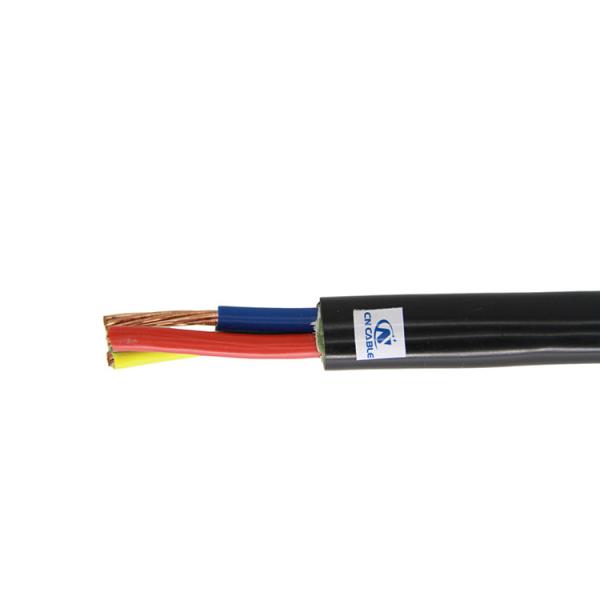

2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
2 AWG 4 Conductor 2KV Type G Power Cable Mining Flexible Rubber Cable
Specifications
Brand Name :
CN Cable Group
Model Number :
Type G Mining Cable
Certification :
ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1000m
Price :
$1 - $60/ Meter
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
1-4 weeks
Packaging Details :
Roll/Wooden Reel/Iron-wooden Reel/Steel Reel
Type :
Insulated
Conductor Type :
Stranded
Application :
Mining
Conductor Material :
Copper
Sheath Material :
Rubber
Insulation Material :
Rubber
Description

2 AWG 4 Conductor 2KV Type G Mining Flexible Rubber Cable



Product Description

Application
Our Type G cable is suitable for use in a variety of heavy-duty applications, including direct burial and submerged applications:

Industrial and light to medium duty mining applications
Heavy duty service as power supply cable
Mobile and portable electrical equipment
3 and 4 conductor use on three-phase AC systems where grounding is required

Standards:

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No.96

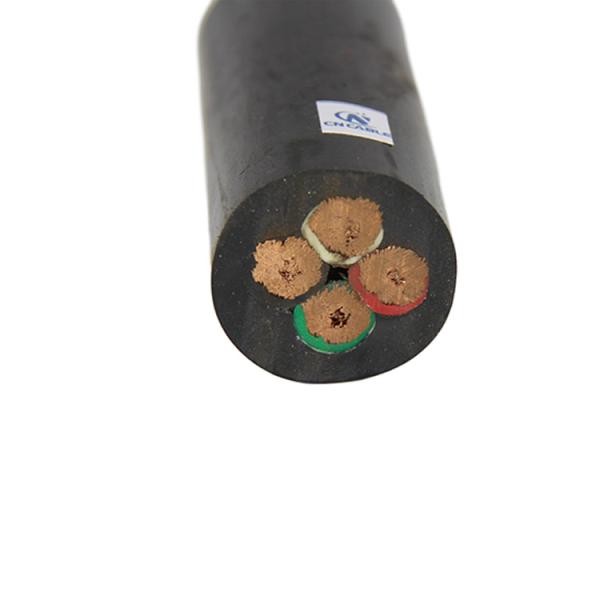

Cable Construction:
Conductor: Stranded Bare Copper
Insulation: Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket: Chlorinated Polyethylene (CPE)

Technical Characteristics:

Voltage Rating: 2000V
Temperature Range: -40°C to +90°C
UL Type G, G-GC
CSA
MSHA Listed
Passes MSHA Flame Test (P-122-MSHA)
Passes UL-1581 Section 1160 Vertical Tray Flame Test
OSHA Acceptable
UL Subject 1650
RoHS Compliant

Data Sheet

Construction No. Of Strands Grounding Conductor Size

Nominal

Insulation

Thickness

Nominal

Overall

Diameter

Nominal

Weight

 Ampacity
No. Of cores x AWG/kcmil - AWG/kcmil mm mm Kg/km A
4x6 259 12 1.5 27.9 1354 72
4x4 412 10 1.5 32.3 2050 93
4x2 259 9 1.5 37.6 2848 122
4x1 331 8 2 42.7 3438 143
4x1/0 414 7 2 45.5 4181 1651
4x2/0 522 6 2 49 4840 192
4x3/0 658 5 2 52.6 6099 221
4x4/0 829 4 2 57.4 7327 255
4x250 973 3 2.4 67.6 9016 280
4x350 1361 1 2.4 75.7 12090 335
4x500 1921 1/0 2.4 86.4 16006 395



Packing&Shipping

Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.

Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
