25mm2 LV Power Cable
25mm2 LV Power Cable
25mm2 LV Power Cable
25mm2 LV Power Cable
Specifications
Brand Name :
CN Cable Group
Model Number :
LV Cable 25 mm2
Place of Origin :
Henan, China (Mainland)
MOQ :
200 Meter/Me
Insulation Material :
XLPE
Type :
without amoured
Application :
underground, canal, water and seabed
Conductor Material :
Copper conductor
Jacket :
PVC/PE
Filler :
PVC
Core Number :
3
Insulation :
XLPE
Dia :
25mm2
Outer Sheath :
PVC sheath
Rated voltage :
600V/1kv
Standard :
According to customer needs
Description

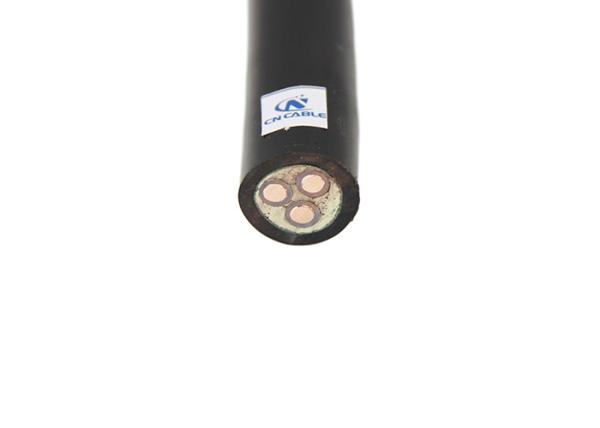

PVC Outer Sheath 3 Core XLPE Insulated 25mm2 Copper Conductor Low Voltage Cable

Product Description

The three-core cable is a wire on the outside and three wires on the inside. The three-core power cord generally comes with brown wire as the live wire, blue wire as the neutral wire, and yellow-green wire as the ground wire. The three-core cable can be used for three-phase power or Ground single-phase power supply line.

Application:

25mm2 Low Voltage Cable are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard:

IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc


Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience

Construction:

3 Core Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheathe

Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales

Three (3) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None-armored Steel tape armored Steel wire armored None-armored Steel tape armored Steel wire armored
CU AL CU AL CU AL
mm2 mm kg/km
16 18.1 20.9 23.4 629 335 846 552 1175 880
25 21.1 23.9 27.1 923 465 1175 718 1705 1248

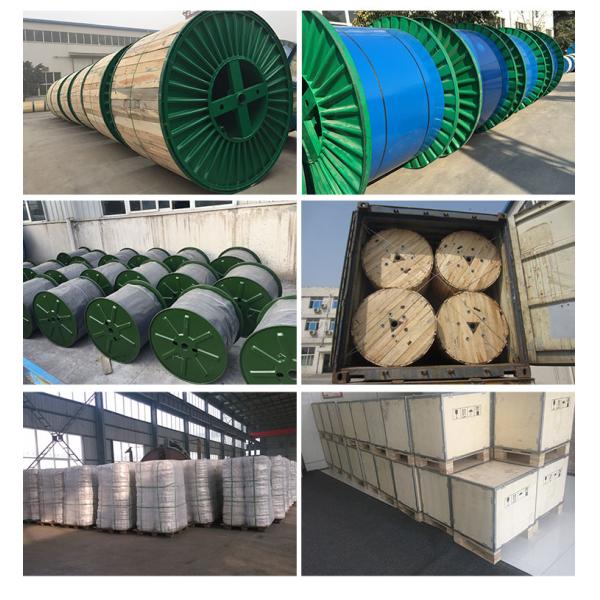

Packaging & Shipping
