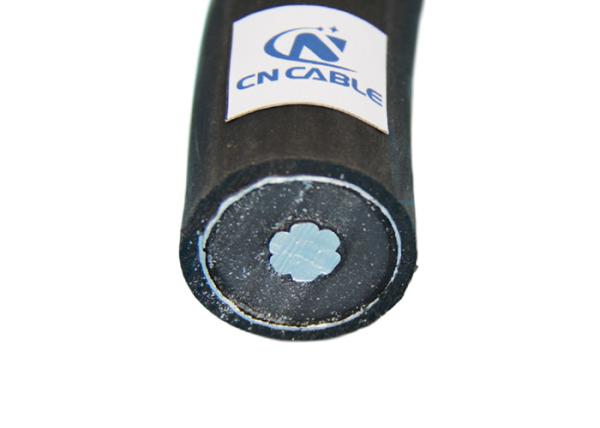

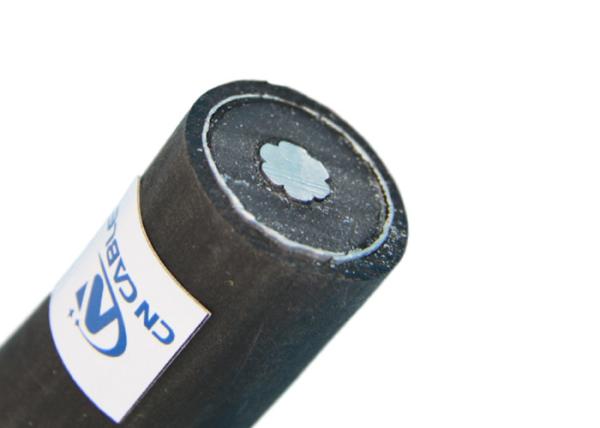

NFC 33229 Single Core 50mm Aluminum Armored Cable
NFC 33229 Single Core 50mm Aluminum Armored Cable
NFC 33229 Single Core 50mm Aluminum Armored Cable
NFC 33229 Single Core 50mm Aluminum Armored Cable
NFC 33229 Single Core 50mm Aluminum Armored Cable
NFC 33229 Single Core 50mm Aluminum Armored Cable
Specifications
Brand Name :
CN CABLE
Model Number :
MV CABLE
Certification :
IEC
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
20 days
Packaging Details :
wooden drum. iron-wooden drum
Conductor :
Aluminum Conductor
Insulation :
XLPE
Cores :
1 core
amour :
Alumium tape amoured
Sheath :
Medium Density Polyethylene
Color :
Black
Description

15KV (8.7/15KV) Single Core 50mm MV UG CABLE NFC 33229 Aluminum Underground Cable

APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

CONSTRUCTION
Conductor
Aluminum Conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Cores
Single core
Amour
Aluminum tape
Sheath
MDPE (Medium Density Polyethylene)

CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
15KV (8.7/15KV)
Sheath Colour
Black

Advantage
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales

15KV (8.7/15KV) Single Core ,Aluminum Underground Cable
Size Insulation thickness Outer Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
mm2 mm mm mm kg/km
35 4.5 1.8 23.4 486
50 4.5 1.8 24.6 559
70 4.5 1.8 26.3 657
95 4.5 1.8 28 769
