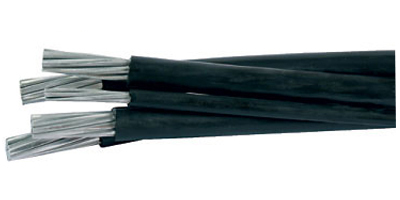

600 / 1000V Low Voltage Aerial Bundled Cable DES LVC IEC 60502 ABC 4X25 4X35
600 / 1000V Low Voltage Aerial Bundled Cable DES LVC IEC 60502 ABC 4X25 4X35
Specifications
Brand Name :
UNI-CABLES
Model Number :
ABC 4X35
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5 km
Price :
Negotiable
Delivery Time :
15-20 working days
Packaging Details :
2 km per reel
Conductor :
Aluminum 1350
Insulation :
XLPE
Voltage :
600V
Temperature :
0°C to 75°C
Description

600/1000V Aerial Bundled Cables to DES/LVC/ABC & IEC 60502 ABC 4X25 4X35

APPLICATION

For use in low voltage distribution system intended for urban and rural electrification schemes, for consumer connection derived from the distribution system.

For aboveground distribution grids, primarily for public distribution grids with a highest mains voltage not above 1,2 kV.

Standard

IEC60502

Construction

Conductor (for either phase, neutral or street lighting) The conductors shall be of H68 aluminium conductor and compacted circular stranded (RM).
Insulation XLPE.
Assembly The cores shall be laid up with a left-hand lay.

Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -20
Operating temperature °C 50
Conductor temperature °C max. +80
Short-circuit temperature °C/s max. +130 /5
Bending radius (min.) mm 18 × O of cable


DIMENSIONS

Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight
mm2 kN A mm kg/km
4x25 RM 3.5 84 21.5 420
4x35 RM 4.9 104 23.9 550
4x120+1x25 RM 16.8 246 43.8 1800
4x185+1x25 RM 25.9 332 50.7 2700
