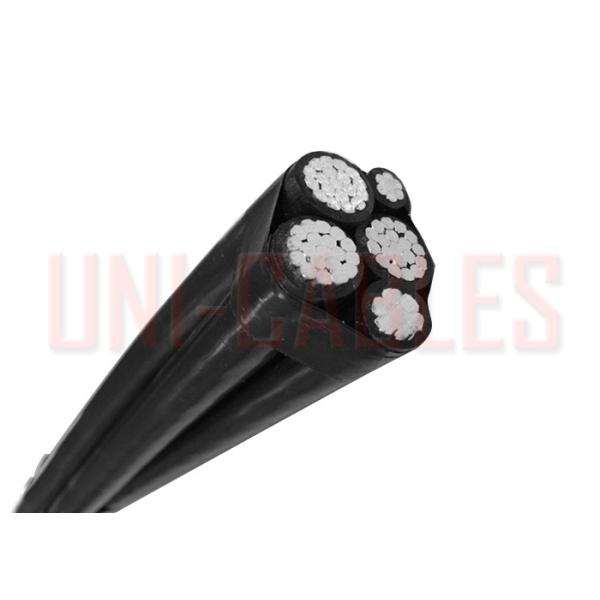

HD626 S1 Aluminum 1350-H19 Overhead Lines AL XLPE ABC For 600 / 1000V
HD626 S1 Aluminum 1350-H19 Overhead Lines AL XLPE ABC For 600 / 1000V
Specifications
Brand Name :
UNI-CABLES
Model Number :
HD626 ABC
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1km
Price :
Negotiable
Supply Ability :
1000000 per week
Delivery Time :
15-20 Working Days
Packaging Details :
2km per reel
Conductor :
Aluminum 1350-H19
Insulation :
XLPE
Voltage :
600V
Temperature Rating :
0°C to 75°C
Color :
Black
Cores :
1-6
Description

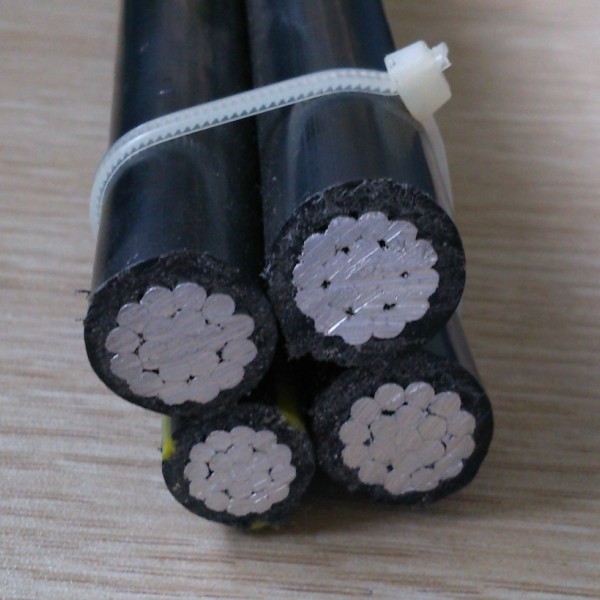

HD626 S1 Aerial Bundled Cable AL/XLPE ABC for 600/1000V Overhead Lines

APPLICATION

For use in low voltage distribution system intended for urban and rural electrification schemes, for consumer connection derived from the distribution system.

For aboveground distribution grids, primarily for public distribution grids with a highest mains voltage not above 1,2 kV.

Standard

HD 626 S1

Construction

Conductor: Aluminum Conductor,Round stranded compresses

Insulation:XLPE

Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -20
Operating temperature °C -30 +80
Conductor temperature °C max. +80
Short-circuit temperature °C/s max. +130 /5
Bending radius (min.) mm 18 × O of cable

DIMENSIONS

Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight
mm^2 kN A mm kg/km
2x 16 RM 1,910 2,5 72 147
2x 25 RM 1,200 4,0 107 208
2x 35 RM 0,868 5,5 132 277
2x 50 RM 0,641 8,0 165 361
4x 16 RM 1,910 2,5 72 286
4x 25 RM 1,200 4,0 107 430
4x 35 RM 0,868 5,5 132 553
4x 50 RM 0,641 8,0 165 746
4x 70 RM 0,443 10,7 205 1009
4x 95 RM 0,320 13,7 240 1332
4x 120 RM 0,253 18,6 290 1632
4x 35 + 1x 35 RM 0,868/0,868 5,5/5,5 132/132 694
4x 50 + 1x 25 RM 0,641/1,200 8,0/4,0 165/107 814
4x 50 + 1x 35 RM 0,641/0,868 8,5/5,5 165/132 845
4x 70 + 1x 25 RM 0,443/1,200 10,7/4,0 205/107 1105
4x 70 + 2x 25 RM 0,443/1,200 10,7/4,0 205/107 1217
4x 70 + 1x 35 RM 0,443/0,868 10,7/5,5 205/132 1150
4x 70 + 2x 35 RM 0,443/0,868 10,7/5,5 205/132 1289
4x 95 + 1x 25 RM 0,320/1,200 13,7/4,0 240/107 1438
4x 95 + 1x 35 RM 0,320/0,868 13,7/5,5 240/132 1467
4x 95 + 2x 25 RM 0,320/1,200 13,7/4,0 240/107 1544
