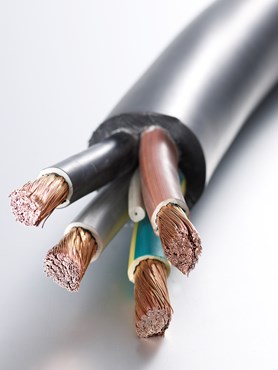

Flexible H07ZZ - F Rubber Multi Core Power Cable , Black Low Smoke Halogen Free Cable
Flexible H07ZZ - F Rubber Multi Core Power Cable , Black Low Smoke Halogen Free Cable
Specifications
Brand Name :
UNI-CABLES
Model Number :
H07ZZ-F
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100 Meters
Price :
Negotiable
Supply Ability :
6000 Meters per Week
Delivery Time :
15-20 Working days
Packaging Details :
100 Meters per Coil
Conductor :
Flexible (fine wire class 5)
Insulation :
Special cross-linked EI 8 rubber
Sheath :
Special cross-linked EM8
Voltage :
450 / 750 V
Temperature Rating :
-40 .. 50°C
Colour :
Black
Description

H07ZZ-F Flexible Cable Rubber Low Smoke Halogen Free Rubber Cable

APPLICATION

H07ZZ-F halogen free flexible multi-core power cable is designed for applications with a voltage rating of 450/750V that are subjected to medium mechanical stresses such as supplying mobile power units, UPS installations, stage lighting and audio visual equipment. The H07ZZ-F is suitable for installation both indoors and outdoors. It has a Low Smoke Zero Halogen (LSZH) insulation and oversheath, making it suitable for installation in buildings or industrial plants with a high density of people, and where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

The H07ZZ-F cable is used across a broad range of applications across almost all industry sectors including Airports, Automation & Process Control, Communications & Telecommunication, Marine & Offshore, Oil, Gas & Petrochemicals, Renewable Energy, and Water Treatment.

CHARACTERISTICS

Voltage Rating (Uo/U) 450/750V

Temperature Rating

Fixed: -20°C to +90°C

Flexed: -5°C to +50°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter

Core Identification

Single core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers Green/Yellow

Sheath Colour Black

DIMENSIONS

Number of Cores Nominal Cross-Sectional Area Nominal Overall Diameter mm Nominal Weight kg/km
1 1.5mm2 6.4 63
1 2.5mm2 7.1 76
1 4.0mm2 8.1 107
1 6.0mm2 8.85 140
1 10mm2 10.7 213
1 16mm2 12.1 291
1 25mm2 14.25 415
1 35mm2 16.1 539
1 50mm2 18.55 740
1 70mm2 20.95 989
1 95mm2 23.4 1290
1 120mm2 25.7 1592
1 150mm2 28.3 1957
1 185mm2 31 2350
1 240mm2 34.45 3099
1 300mm2 37.7 3687
1 400mm2 42.1 4850
1 500mm2 46.65 5998
