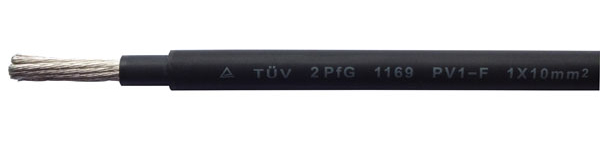

Annealed PV1 - F Solar Power Cables Copper Conductor XLPE Insulation Sheath
Annealed PV1 - F Solar Power Cables Copper Conductor XLPE Insulation Sheath
Specifications
Brand Name :
UNI-CABLES
Model Number :
PV1-F
Certification :
ISO9001,CCC
Place of Origin :
CHINA
MOQ :
1000 Meters
Price :
US$ 1.5-1.8 per Meter
Supply Ability :
100km per Month
Delivery Time :
15-20 working days
Packaging Details :
100 Meters oer
Conductor :
Class 5 flexible tinned copper conductor
Insulation :
XLPE
Sheath :
crossed linked compound M21
Voltage Rating (Uo/U) :
AC: 600/1000V, DC: 900/1800V
Temperature Rating :
Fixed: -40°C to +90°C
Minimum Bending Radius :
Flexed: 5 x overall diameter
Maximum Voltage (Umax) :
1.8kV DC (conductor/conductor, non earthed system, circuit not under load)
Maximum Conductor Temperature :
+120°C (for 20000h)
Description

PV1-F Solar Power Cables Annealed Copper Conductor XLPE Insulation XLPE Sheath

INTRODUCTION

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components in the photovoltaic system. Matching step with the environment friendly shift the Solar Cable has been made which performs highest standards of application in its diverse usage.

Properties

  • Used in extreme weather conditions.
  • Equipped with UV Resistance.
  • Halogen-free: low smoke emission and low toxicity during fire.
  • Flame & Fire retardant.
  • Flexibility & stripability: for fast and easy installation.
  • Easily Recyclable: in accordance with new government norms.
  • Easy installtion: with color identification.
  • Suitable to common connector types.
  • One common factor for most of the photovoltaic power system is outdoor use, characterized by high temperatures and high UV radiation.

Features

Chemical Features:

  • Weather resistant.
  • Resistant to mineral oils.
  • Resistant to acids & alkaline.

Thermal Features:

  • Ambient Temperature : -40oC ~ +90oC.
  • Maximum Temperature at Conductor: 120oC (20000h).
  • Short Circuit Temperature: 200oC at conductor (max. 5 sec).

Electrical Features:

  • Rated Voltage: 0.6/1 kV AC .
  • Rated DC Voltage: 1.5 kV.
  • Maximum Permitted DC Voltage: 1.8 kV (conductor / conductor, non earthed system, circuit not under load).
  • Maximum Permitted AC Voltage: 0.7/1.2 kV .
  • Working Voltage: DC 1000 V.
  • Insulation Resistance: 1000 MW-km.
  • Spark Test: 6000 Vac (8400 Vdc).
  • Voltage Withstand: 6500 V as per EN50395 for 5 min.

DIMENSIONS

Number of cores x conductor cross-section Construction of individual conductor External diameter Conductor diameter Insulation thickness Conductor resistance at 20 °C Current load Cu weight Cable weight
N x mm² n x mm mm mm mm mm Ω/km kg/km kg/km
1 x 1,5 30 x 0,25 5,1 1,6 0,7 13,3 30 14,4 38,4
1 x 2,5 50 x 0,25 5,4 2,0 0,7 7,98 41 24 45,4
1 x 4 56 x 0,30 6,2 2,5 0,7 4,95 55 38,4 60,1
1 x 6 84 x 0,30 6,9 3,1 0,7 3,30 70 57,6 90,7
1 x 10 80 x 0,40 8,2 4,1 0,7 1,91 98 96 131,1
1 x 16 128 x 0,40 9,3 5,2 0,7 1,21 132 153,6 187,1
1 x 25 200 x 0,40 10,8 6,5 0,9 0,78 176 240 276,1
1 x 35 280 x 0,40 12,1 7,5 0,9 0,554 218 336 368,8
1 x 50 400 x 0,40 14,8 9,0 1,0 0,386 276 480 557
1 x 70 356 x 0,50 16,9 11,0 1,1 0,272 347 672 767
1 x 95 485 x 0,50 18,7 12,7 1,1 0,206 416 912 989,6
1 x 120 614 x 0,50 20,7 13,7 1,2 0,161 488 1152 1232,8
