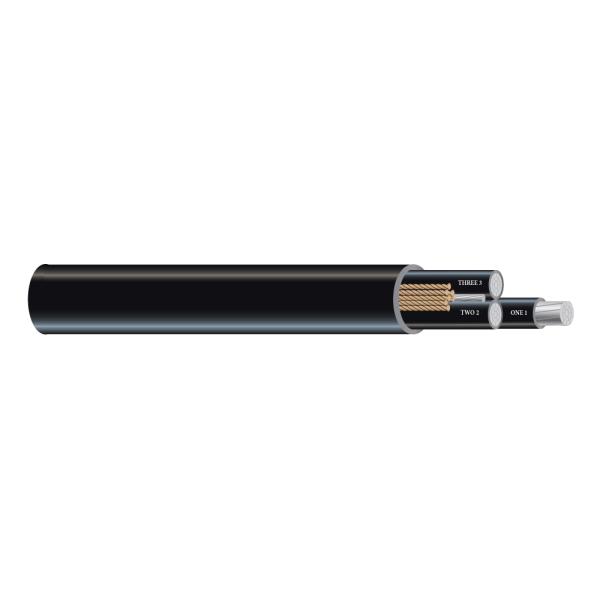

AA8030 Type TC - ER Power Cable 600V 3C Conductor PVC / Nylon Insulation Industrial
AA8030 Type TC - ER Power Cable 600V 3C Conductor PVC / Nylon Insulation Industrial
Specifications
Brand Name :
UNI-CABLES
Model Number :
AL TC-ER
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
500meters
Price :
Negotiable
Supply Ability :
1000000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
Fumigated Wooden reels,
Conductor :
Aluminum Alloy 8030
Insulation :
PVC/NYLON
Rated Voltage :
0.6/1kv
Temperature :
-40°C to 90°C
Ground :
1C Bare
Color :
Black
Description

Type TC-ER Power Cable 600V 3C AA8030 Conductor PVC/Nylon Insulation Industrial

APPLICATIONS AND FEATURES:

600 Volt Type TC-ER power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 75°C in wet locations and 90°C in dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10.

SPECIFICATIONS:

• ASTM B800 8000 Series Aluminum Alloy Wire

• ASTM B836 Compact Rounded Stranded Aluminum Conductors

• UL 83 Thermoplastic Insulated wires And cables

• UL 1277 Electrical Power And Control Cable

• UL 1685 - Flame Test

• UL 1581 - Electrical Wires, Cables and Flexible Cords

• IEEE 1202/FT4 - Vertical Tray Flame Test (70,000 Btu/hr) And ICEA T-29-520 - (210,000 Btu/hr)

• ICEA S-58-679 - Control Cable Conductor Identification Method 4

• ICEA S-95-658 NEMA WC70 - Power cables rated 2000 volts or less for the distribution of electrical energy

DIMENSIONS

Cond. Size Dia Over Cond. Insul. Thickness Dia Over Insul. Ground Jacket Thickness Approx. OD Aluminum Weight Approx. Weight
AWG inches inches inches No. x AWG mils inches lbs./MFT lbs./MFT
8 0.134 35 0.204 1 x 8 45 0.531 63 146
6 0.169 35 0.239 1 x 8 60 0.636 90 208
4 0.213 46 0.305 1 x 6 60 0.779 144 313
2 0.268 46 0.360 1 x 6 80 0.938 214 454
1 0.299 57 0.413 1 x 4 80 1.052 278 578
1/0 0.336 57 0.450 1 x 4 80 1.132 341 673
2/0 0.376 57 0.490 1 x 4 80 1.218 418 786
3/0 0.423 57 0.537 1 x 4 80 1.320 518 929
4/0 0.475 57 0.589 1 x 2 80 1.432 666 1126
250 0.520 68 0.656 1 x 2 80 1.577 775 1332
300 0.570 68 0.706 1 x 2 80 1.685 918 1528
350 0.616 68 0.752 1 x 2 110 1.844 1060 1821
500 0.736 68 0.872 1 x 1 110 2.104 1507 2420
600 0.813 79 0.971 1 x 1 110 2.317 1792 2885
750 0.908 79 1.066 1 x 3/0 110 2.523 2291 3521
