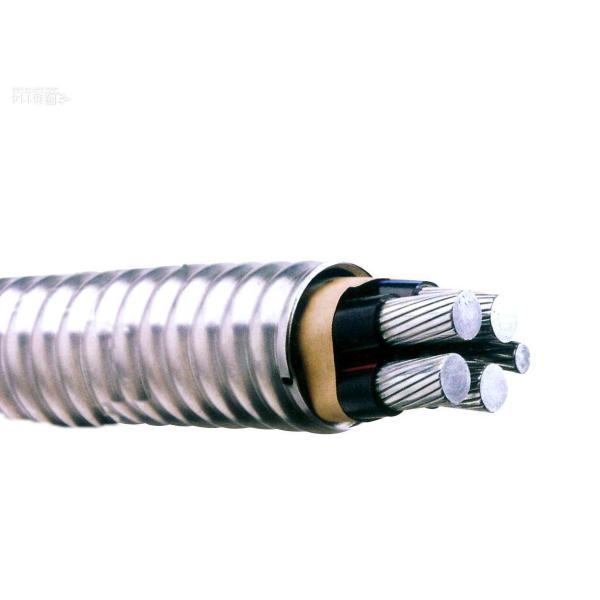

YJHLV6 ISO9001 Aluminum Alloy Cable AA8030 Conductor 0.6 1kv Inter Locked
YJHLV6 ISO9001 Aluminum Alloy Cable AA8030 Conductor 0.6 1kv Inter Locked
Specifications
Brand Name :
UNI-CABLES
Model Number :
YJHLV6
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000 meters
Price :
Negotiable
Supply Ability :
1000000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
Fumigated Wooden reels,
Conductor :
Aluminum Alloy 8030
Insulation :
XLPE
Rated Voltage :
0.6/1kv
Temperature :
-40°C to 90°C
Armore :
Aluminum Inter Lock
Color :
Aluminum White
Description

YJHLV6 Aluminum Alloy Cable AA8030 Conductor Aluminum Inter Locked Cable

APPLICATIONS

YJHLV6 armoured cable made of aluminum alloy conductor cross section was from 16 to 400 mm2. Aluminum 5000 series tape interlocked armore, conductor to ASTM B type pressure stranded, 1838.3 GB/T - 2001 flame retardant grade C aluminum alloy cable conductor completely meet GB3956, also accord with GB/T 12706.1 and "the latest version of the standard.

Constructions:

1. Conductor: 8030 Aluminum Alloy Conductor

2. Insulation: XLPE insulation

3. Armored: Interlock Aluminum alloy armored

4. Sheath: Non-sheath

Technical Data:

Shaped extruded aluminum alloy conductor
Flame retardant XLPE insulation
Corrugated polyester tape wrapped
Aluminum interlocking armored sheath
PVC or polyolefin sheath sheath
5000V and above using the . Outer shield

Standard:

IEC60502.1 other standard like AS/NZS, BS, DIN,upon request

Size:
single core cable: 1/0 to 750 kcmil
multi core cable: 6 AWG to 750 kcmil

Voltage degree:

0.6/1KV, 1.8/3KV, 6/6KV, 8.7/15KV, 12/50KV, 26/35KV

DIMENSIONS

Size Phase Conductor O.D. Weight Resistance @ 20oC Current(A)
Dia. Insulation Thickness mm kg/km ≤Ω/km In Air In Ground
4×16+1×10 4.46 0.7 21 427 1.91 69 95
4×25+1×16 6 0.9 25.7 666 1.2 88 119
4×35+1×16 7 0.9 27.9 839 0.868 109 140
4×50+1×25 8.2 1 32 1096 0.641 133 172
4×70+1×35 10 1.1 37.9 1580 0.443 168 214
4×95+1×50 11.6 1.1 42.1 2035 0.32 203 259
4×120+1×70 13 1.2 47.9 2527 0.253 238 294
4×150+1×70 14.6 1.4 52.9 3130 0.206 273 333
4×185+1×95 16.2 1.6 58.1 3884 0.164 291 378
4×240+1×120 18.4 1.7 64.2 4895 0.125 375 441
4×300+1×150 20.6 1.8 70.5 5988 0.1 431 497
4×400+1×185 23.8 2 79.4 7672 0.0778 511 574
