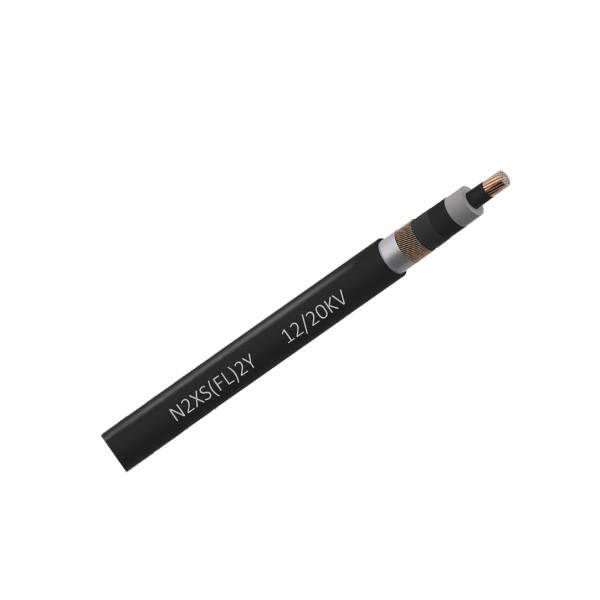

Waterproof Medium Voltage Power Cable Longitudinal Radially N2XS FL 2Y XLPE
Waterproof Medium Voltage Power Cable Longitudinal Radially N2XS FL 2Y XLPE
Specifications
Brand Name :
UNI-CABLES
Model Number :
N2XS(FL)2Y
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100M
Price :
Negotiable
Supply Ability :
7000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
200M in Steel Reels
Temperature Rating :
Flexed: -20°C to +70°C
Short Circuit Temperature :
+250°C
Conductor material :
Class 2 stranded copper conductor
Insulation :
XLPE DIX8
Sheath :
Polyethylene DMP2
Sheath Colour :
Black
Description

N2XS(FL)2Y Medium Voltage Cable Longitudinally and Radially Water-proof Cable

APPLICATION

For installation in the ground, in water, outdoors, indoors and in cable ducts for power stations, industrial applications and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or operation. This cable is also suitable for unfavourable operating conditions, specifically where there is a need to avoid water penetration both crosswise and lengthwise following mechanical damage.

CONSTRUCTION

stranded copper conductor

- conductor screen of semiconducting compound

- insulation of cross-linked polyethylen (XLPE)

- screen of semiconducting compound - semiconducting bedding

- screen of copper wires and copper tape

- swelling powder or tape

- aluminium tape tightly bonded to the PE sheath

- PE sheath

Conductor material: bare copper

Conductor class: class 2 = stranded

Insulation: XLPE DIX8

Sheathing material: polyethylene DMP2

Bonded sheath: yes

Transversely watertight: yes

Longitudinally watertight: yes

Colour outer sheath: black

Meter mark: yes

UV-resistant: yes

Maximum permitted conductor temperature: 90 °C

Permitted outer cable temperature, fixed: 70 °C

Permitted outer cable temperature, in motion/ during installation: -20 - +70 °C

Bending radius, fixed installation: 15 x DA

Partial discharge: 2 pC


N2XS(FL)2Y 6/10 kV N2XS(FL)2Y 12/20 kV N2XS(FL)2Y 18/30 kV
Nominal voltage Uo: 6 kV 12 kV 18 kV
Nominal voltage U: 10 kV 20 kV 30 kV
Maximum permitted
operating voltage in threephase
systems:		 12 kV 24 kV 36 kV
Test voltage: 21 kV 42 kV 63 kV

DIMENSIONS

N2XS(FL)2Y - 6/10 (12)kV Cable
NO. OF
CORES		 NOMINAL CROSS SECTIONAL AREA OVERALL
DIAMETER
mm		 NOMINAL WEIGHT
kg/km
Conductor
mm²		 Copper Wire Screen
mm²
1 35 RM/16 29 870
1 50 RM/16 30 1050
1 70 RM/16 32 1300
1 95 RM/16 33 1550
1 120 RM/16 35 1800
1 150 RM/25 36 2100
1 185 RM/25 38 2450
1 240 RM/25 40 3000
1 300 RM/25 42 3650
1 400 RM/35 46 4600
1 500 RM/35 49 5600
N2XS(FL)2Y - 12/20 (24)kV Cable
1 35 RM/16 32 1100
1 50 RM/16 32 1255
1 70 RM/16 33 1510
1 95 RM/16 35 1765
1 120 RM/16 35 2070
1 150 RM/25 36 2320
1 185 RM/25 37 2780
1 240 RM/25 39 3380
1 300 RM/25 42 4035
1 400 RM/35 45 4985
1 500 RM/35 48 6090
