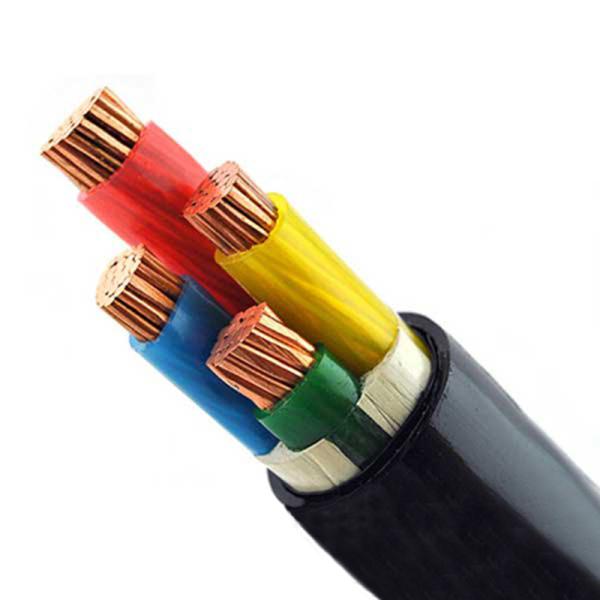

PVC BS6004 600 / 1100V Low Voltage Cable Multi Core For Infrastructure Construction
PVC BS6004 600 / 1100V Low Voltage Cable Multi Core For Infrastructure Construction
Specifications
Brand Name :
UNI-CABLES
Model Number :
6004 1kv
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100M
Price :
Negotiable
Supply Ability :
7000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
200M in Steel Reels
Fire resistance :
Yes
Conductor :
Class 2 stranded copper
Binder Tape :
Polyester tape
Sheathing material :
PVC
Sheath Color :
Black
Oversheath :
Flame retardant PVC compund
Description

BS6004 Low Voltage 600/1100V Multi Core Cable For Infrastructure Construction

Application:
Power cable: indoors, cable trunking, outdoors and buried in the ground for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.

Special Features on Request :

  • Fire resistance
  • Oil resistance
  • UV resistance
  • Flame Retardant Cat A,B,C
  • Flame Retardant non-category
  • Heat resistance
  • Anti-termite
  • Anti-rodent
  • Low smoke zero halogen

Note: Conductor shape

  • 1.5 – 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
  • 16 sqmm supplied in non-compacted circular circular stranded (rm) conductor shape
  • 25-500 sqmm supplied in non-compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Construction:

Conductors : Plain annealed stranded copper conductor
Insulation : Flame retardant PVC compound
Filler (where applicable) : PVC or Polypropylene yarn
Binder Tape (where applicable) : Polyester (mylar) tape
Oversheath : Flame retardant PVC compund

Core Identification:

Insulation 1-Core : Red, Yellow, Blue, Black, Yellow/Green or other colours as per customer's request
2-Core : Red and Black
3-Core : Red, Yellow and Blue
4-Core : Red, Yellow, Blue and Black
Sheath Black, Grey or White

DIMENSIONS

Conductor Nominal Thickness of Insulation Nominal Thickness of Sheath Approx. Overall Diameter & Weight
2C 3C 4C
Size No/Dia. of Wire 2C 3C 4C OD WT OD WT OD WT
mm2 mm mm mm mm mm mm kg/km mm kg/km mm kg/km
1.5 7/0.53 0.8 1.8 1.8 1.8 11 145 11.5 165 12 200
2.5 7/0.67 0.8 1.8 1.8 1.8 11.5 180 12 210 13 255
4 7/0.85 1 1.8 1.8 1.8 13.5 255 14 305 15.5 375
6 7/1.04 1 1.8 1.8 1.8 15 285 15.5 370 17 455
10 7/1.35 1 1.8 1.8 1.8 17 395 17.5 515 19 665
16 7/1.70 1 1.8 1.8 1.8 19 590 20 740 22 930
25 7/2.14 1.2 1.8 1.8 1.8 19 710 21 1015 23.5 1325
35 19/1.53 1.2 1.8 1.8 1.8 20 930 23 1330 26 1740
50 19/1.78 1.4 1.8 1.8 1.9 23 1225 26 1765 29 2320
70 19/2.14 1.4 1.9 1.9 2 25.5 1680 29 2435 33 3215
95 19/2.52 1.6 2 2.1 2.2 29 2280 35 3360 39 4400
120 37/2.03 1.6 2.1 2.2 2.3 32 2805 38 4140 42.5 5440
150 37/2.25 1.8 2.2 2.3 2.5 35 3430 42 5070 47 6675
185 37/2.52 2 2.4 2.5 2.6 39 4285 46 6330 53 8360
240 61/2.25 2.2 2.5 2.6 2.8 48 5565 56 8265 61 10870
300 61/2.52 2.4 2.7 2.8 3.1 53 6965 63 10355 68 13650
400 61/2.85 2.6 2.9 3.1 3.3 58 9020 70 13090 78 17360


PVC BS6004 600 / 1100V Low Voltage Cable Multi Core For Infrastructure Construction
