Type CV JIS Standard CU LV Cable XLPE PVC For General Purpose Power Distribution
Type CV JIS Standard CU LV Cable XLPE PVC For General Purpose Power Distribution
Specifications
Brand Name :
UNI-CABLES
Model Number :
CV
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100M
Price :
Negotiable
Supply Ability :
7000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
200M in Steel Reels
Standard :
IEC60502-1
Application :
Power distribution
Insulation :
XLPE
Sheathing material :
PVC
Filler :
Non-hygroscopic material
Voltage :
600/1000V
Description

Type CV JIS Standard CU/XLPE/PVC LV Cable for General Purpose Power Distribution

APPLICATION

CV cables are used for general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

Reference Standard:

IEC 60502-1

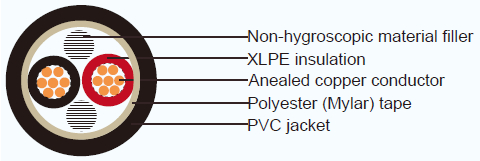

Cable Construction:

Conductor: Circle or circle compacted stranded annealed copper wires

Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Sheath: Polyvinyl chloride (PVC), Black color.(A special flame retardant sheath can be supplied).

Type CV JIS Standard CU LV Cable XLPE PVC For General Purpose Power Distribution

Technical Characteristics:

Maximum conductor temperature 90oC Circuit voltage not exceeding 600 volts Test voltage 3500 volts

Cable Parameter

NOMINAL
SECTIONAL
AREA		 NO.
OF WIRE		 DIAMETER
OF
CONDUCTOR
(APPROX.)		 THICKNESS
OF
INSULATION		 THICKNESS OF SHEATH OVERALL DIAMETER (APPROX.) MAXIMUM
DC.
RESISTANCE OF
CDR. AT 20°C		 CABLE WEIGHT
(APPROX.)
MM² MM MM MM MM OHM / KM KG / KM
1 core
1.5 7/0.53 1.59 0.7 1.4 6.3 12.1 50
2.5 7/0.67 2.01 0.7 1.4 6.7 7.41 70
4 7/0.85 2.55 0.7 1.4 7.2 4.61 90
6 7/1.04 3.12 0.7 1.4 7.8 3.08 110
10 7/1.35 4.05 0.7 1.4 9.4 1.83 170
16 compacted 4.7 0.7 1.4 10 1.15 210
25 compacted 5.9 0.9 1.4 12 0.727 310
35 compacted 6.9 0.9 1.4 13 0.524 400
50 compacted 8.1 1 1.4 14.5 0.387 520
70 compacted 9.8 1.1 1.4 16 0.268 720
95 compacted 11.4 1.1 1.5 18.5 0.193 970
120 compacted 12.9 1.2 1.5 20 0.153 1,210
150 compacted 14.4 1.4 1.6 22 0.124 1,490
185 compacted 15.9 1.6 1.6 24 0.0991 1,840
240 compacted 18.3 1.7 1.7 27 0.0754 2,400
300 compacted 20.5 1.8 1.8 30 0.0601 2,980
400 compacted 23.2 2 1.9 34 0.047 3,800
500 compacted 26.4 2.2 2 37 0.0366 4,850
630 compacted 30.2 2.4 2.2 42 0.0283 6,240
4 cores
1.5 7/0.53 1.59 0.7 1.8 12.5 12.1 170
2.5 7/0.67 2.01 0.7 1.8 13.5 7.41 220
4 7/0.85 2.55 0.7 1.8 14.5 4.61 290
6 7/1.04 3.12 0.7 1.8 16 3.08 380
10 7/1.35 4.05 0.7 1.8 20 1.83 570
16 compacted 4.7 0.7 1.8 22 1.15 790
25 compacted 5.9 0.9 1.8 26 0.727 1,180
35 compacted 6.9 0.9 1.8 28 0.524 1,550
50 compacted 8.1 1 1.9 32 0.387 2,060
70 compacted 9.8 1.1 2 36 0.268 2,930
95 compacted 11.4 1.1 2.1 42 0.193 3,970
120 compacted 12.9 1.2 2.3 46 0.153 4,980
150 compacted 14.4 1.4 2.4 51 0.124 6,130
185 compacted 15.9 1.6 2.6 56 0.0991 7,660
240 compacted 18.3
