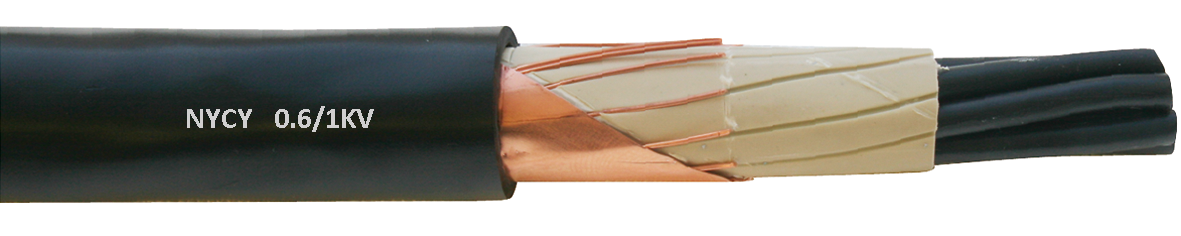

NYCY VDE 0276 603 Low Voltage Cable , 600 1000V Cu Conductor PVC Sheathed Cable
NYCY VDE 0276 603 Low Voltage Cable , 600 1000V Cu Conductor PVC Sheathed Cable
Specifications
Brand Name :
UNI-CABLES
Model Number :
NYCY
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100M
Price :
Negotiable
Supply Ability :
7000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
200M in Steel Reels
Standard :
VDE 0276-603
Conductor :
Cl.1 1 or Cl.2 Copper stranded
Core identification :
Acc. to DIN VDE 0293
Sheathing material :
PVC DMV 5
Core stranding :
To layers
Nominal voltage U0/U :
0,6/1,0kV
Description

NYCY Low Voltage Cable With Corrugated Concentric Protective Cu Conductor

APPLICATION

The NYCY cable is a European power cable insulated, bound and sheathed in Polyvinyl Chloride (PVC). It is suitable for use as a fixed wiring cable in installations with a voltage rating of 600/1000V, both indoors and outdoors, in cable ducts, plaster, brickwork and in the ground. It is used for power plants, industrial plants, and in local power networks, particularly if increased mechanical and electrical protection is required.

CONSTRUCTION

Construction Conductor: copper, bare, single- or multi-wired

Core insulation: PVC

Core identification: acc. to DIN VDE 0293

Core stranding: to layers

Screen: concentric, consisting of bare copper wires, wave form, with counter helix consisting of copper tape

Sheath: PVC

Colour: black

Electrical characteristics

Nominal voltage U0/U: 0,6/1,0kV

Test voltage online 4,0kV

Thermal & mechanical properties

Temperature range -30°C to +70°C

Minimum bending radius stationary 12x diameter

Conductor types (acc. to DIN VDE 0295)

re round, solid conductor

rm round, stranded conductor

se sector-shaped conductor, solid

sm sector-shaped conductor, stranded

DIMENSIONS

Number of cores x conductor cross-section Construction Conductor diameter External diameter Insulation thickness Sheath thickness Short circuit current 1s Cu weight Cable weight
nominal min-max. nominal nominal nominal approx.
N x mm² mm mm mm mm kA kg/km Kg/km
Power NYCY
2 x 1,5/1,5 RE 1,5 12,0 - 13,0 0,8 1,8 0,173 52 200
2 x 2,5/2,5 RE 1,9 13,3 - 14 0,8 1,8 0,288 80 260
2 x 4/4 RE 2,4 15,3 - 16,0 1 1,8 0,46 123 350
2 x 6/6 RE 2,9 16,1 - 17,5 1 1,8 0,69 182 430
2 x 10/10 RE 3,7 18,5 - 19,5 1 1,8 1,15 312 520
2 x 16/16 RE 4,6 20,5 1 1,8 1,84 489 720
3 x 1,5/1,5 RE 1,5 13 - 17 0,8 1,8 0,173 66 220
3 x 2,5/2,5 RE 1,9 14 - 17 0,8 1,8 0,288 104 280
3 x 4/4 RE 2,4 15 - 18 1 1,8 0,46 161 390
3 x 6/6 RE 2,9 16 - 20 1 1,8 0,69 240 500
3 x 10/10 RE 3,7 18 - 22 1 1,8 1,15 408 680
3 x 16/16 RE 4,6 16 - 24 1 1,8 1,84 643 1010
4 x 1,5/1,5 RE 1,5 14 - 18 0,8 1,8 0,173 81 250
4 x 2,5/2,5 RE 1,9 15 - 19 0,8 1,8 0,288 128 340
4 x 4/4 RE 2,4 16 - 20 1 1,8 0,46 200 460
4 x 6/6 RE 2,9 17 - 21 1 1,8 0,69 297 580
4 x 10/10 RE 3,7 19 - 23 1 1,8 1,15 504 765
4 x 16/16 RE 4,6 21 - 25 1 1,8 1,84 796 1060
5 x 1,5/1,5 RE 1,5 15 - 16 0,8 1,8 0,173 95 330
5 x 2,5/2,5 RE 1,9 16 - 17 0,8 1,8 0,288 152 400
5 x 4/4 RE 2,4 19 1 1,8 0,46 238 550
5 x 6/6 RE 2,9 20 - 22 1 1,8 0,69 355 700
5 x 10/10 RE 3,7 22,5 1 1,8 1,15 600 1000
