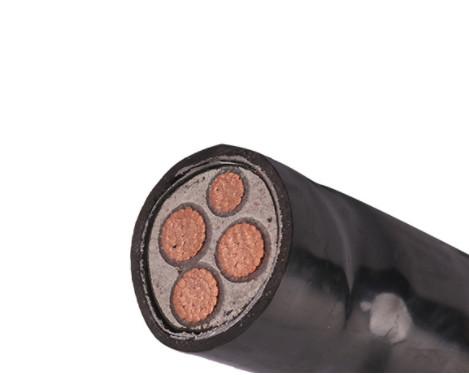

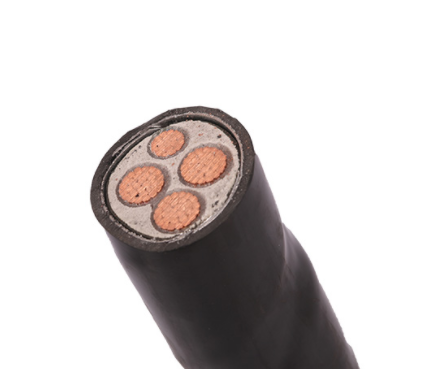

Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire
Specifications
Brand Name :
Huanghe
Model Number :
YJV YJV22 YJV32
Certification :
ISO CCC OHSAS
Place of Origin :
China
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000meter per week
Delivery Time :
5-8days
Packaging Details :
Wooden drum
Application :
Underground
Conductor material :
tinned or bare copper
Insulation material :
XLPE
Type :
Low Voltage
Jacket :
PVC
Color :
black
Description

Low Voltage XLPE Copper Cable PVC Sheath SWA STA ATA Armored Electrical Wire

0.6/1KV underground cable are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.

0.6/1KV underground cable is up to 1kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.


0.6/1KV underground cable Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

1 Structure:

Conductor: Solid or stranded copper

Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape

Binder: Binding tape

Inner sheath: Polyvinyl chloride (PVC)

Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)

Sheath: Polyvinyl chloride (PVC)

2 Parameters

A, Number of cores:1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

B, Nominal Section : Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630

3 Characteristics:

XLPE insulated steel wire armoured power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature.

Low voltage XLPE Copper Cable PVC sheath SWA armour STA armour ATA armour

Nominal
sectional area
mm 2		 Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MOHM/km		 Weight
Kg/km
2.5 9/0.41 0.8 4.2 7.41 0.011 33.0
4 19/0.52 0.8 4.8 4.61 0.009 48.0
6 19/0.64 0.8 5.6 3.08 0.0084 68.0
10 49/0.52 1.0 7.6 1.83 0.0072 115.0
16 49/0.64 1.0 8.8 1.15 0.0062 176.0
25 98/0.58 1.2 11.0 0.727 0.0058 272.0
35 133/0.58 1.2 12.5 0.524 0.0052 384.0
50 133/0.68 1.4 16.5 0.387 0.0051 510.0
70 189/0.68 1.4 16.5 0.268 0.0045 714.0
95 259/0.68 1.6 19.5 0.139 0.0035 965.0
120 259/0.76 1.8 22.0 0.153 0.0032 1210.0
150 259/0.85 1.8 25.0 0.124 0.0032 1510.0

Low voltage XLPE Copper Cable PVC sheath SWA armour STA armour ATA armour
