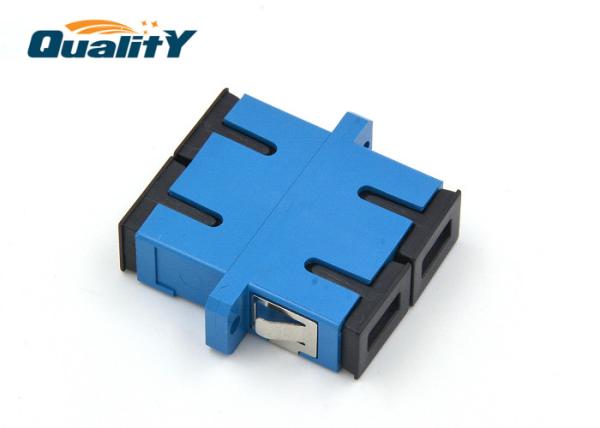

0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
0.1dB SC UPC Fiber Optic Adapter / Flange Sc Duplex Optic Fiber Coupler
Specifications
Brand Name :
QualitY or QY
Model Number :
QADSCDXW-008
Certification :
ISO9001 2015
Place of Origin :
China Dongguan
MOQ :
100 pcs sc upc duplex fiber adapter
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
50000 Piece per day sc upc duplex fiber adapter
Delivery Time :
7 -12 working days
Packaging Details :
PE bag or customized package & cartons
Connector type :
SC UPC without flange
Housing material :
pbt
Operating temp :
-40 to +85 degree
Sleeve material :
Zirconia
Color :
blue
IL :
<0.2dB
Application :
LAN, FTTH
Description

0.1dB QADSCDXW SC UPC fiber flange coupler flange sc duplex optic fiber coupler

Description

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Features

1. Low insertional loss and back reflection loss

2. High prcision alignment

3. Nickel plated brass body

4. Use in Single-mode or Multimode applications

5 .Choice of housing material and sleeve material

Product Applications

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks

Product Specification

Parameter

Unit

LC, SC, FC, ST

SM

MM

PC

UPC

APC

PC

Insertion Loss (Typical)

dB

≤0.2

≤0.2

≤0.2

≤0.2

Return Loss

dB

≥45

≥50

≥60

≥30

Exchangeability

dB

≤0.2

Repeatability

dB

≤0.2

Durability

Time

>1000

Operating Temperature

°C

-40~75

Storage Temperature

°C

-45~85
