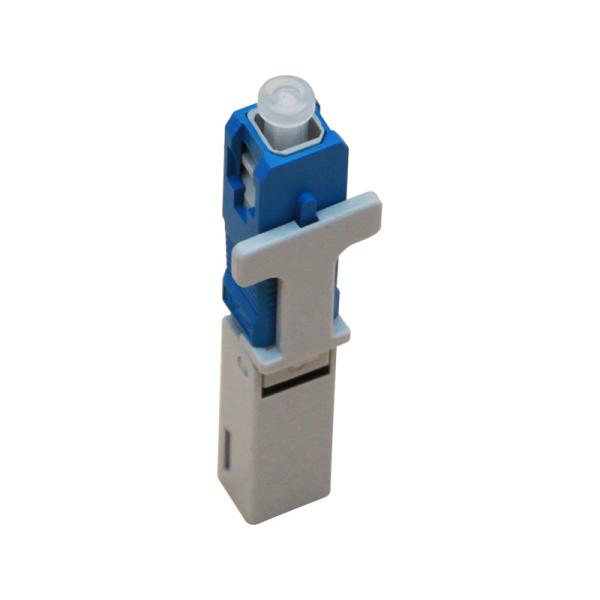

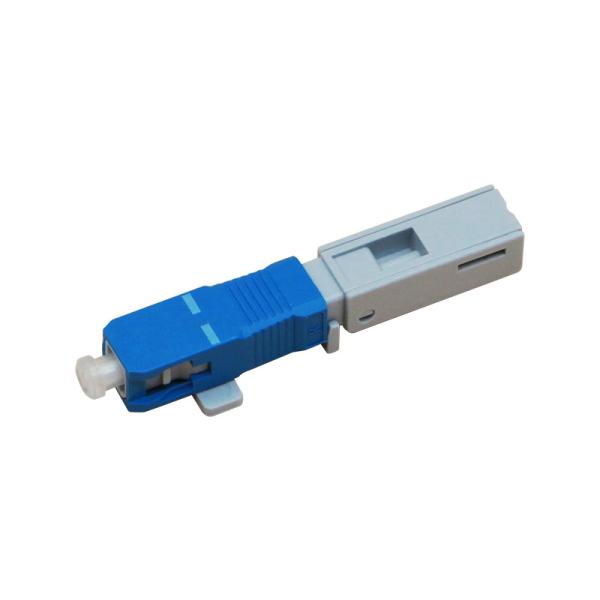

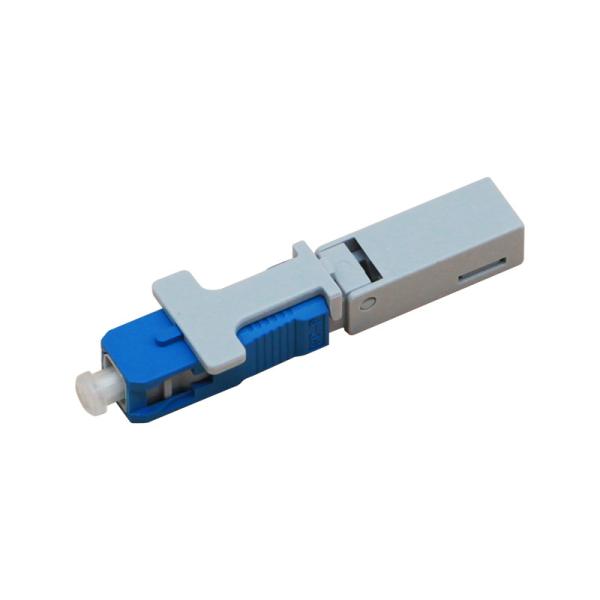

Fiber Optic SC APC Fast Connector
Fiber Optic SC APC Fast Connector
Fiber Optic SC APC Fast Connector
Fiber Optic SC APC Fast Connector
Fiber Optic SC APC Fast Connector
Fiber Optic SC APC Fast Connector
Specifications
Brand Name :
QualitY or QY
Certification :
ISO9001,RoHS,CE
Place of Origin :
Dongguan, China
MOQ :
100pcs for minium order
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000pcs per day
Delivery Time :
7 working days
Packaging Details :
PE bag or customized package & cartons
Product Type :
SC Upc Fast Connector
Color :
Blue
Insertion loss :
≤0.3dB
Return loss :
≥ 50dB
Repeatability :
≤0.1dB
Durability :
≥ 1000 times
Operating temperature :
-25°C ~ +70°C
Description

China Manufacturer FTTH Field Quick Assembly Fiber Optic SC APC Fast Connector

Fiber Optic SC APC Fast Connector

Overview

QY's SC single-piece connectors are designed for quick and easy termination either on-site or in the factory. The SC range covers Multimode and Singlemode options which include all colors - Beige, Aqua, Violet, Blue, and Green options for all Multimode and Singlemode & APC fiber types. All connectors have precision Zirconia ceramic ferrules which are pre-radiused for rapid polishing.

Features

  • ROHS, CE compliant

  • High Reliability

  • Low return losses due to the APC polish

  • Easy installation due to the SC connector

  • Effective data transmission

  • Reliable optical performance

Application

  • Fibre Optic Cable Distribution network

  • Fibre To The Home (FTTH) network

  • Highly stable and reliable performance

  • High Success Rate design and technology

  • Reusable termination capability (up to 5x)

  • Time-saving

Specification

Item Name

Unit

SC/UPC Field Installable Connector

Grade S (Standard)

Grade P (Premium)

Fiber Type

um

9/125

9/125 (Corning)

Polishing

---

UPC

Insertion Loss

dB

≤0.5

≤0.3

Return Loss

dB

≥45

≥50

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

Operating Temp.

℃

-25 ~ +70

Durability

times

≥1,000

Reusability

times

≥5

Tensile Strength

N

≥50
