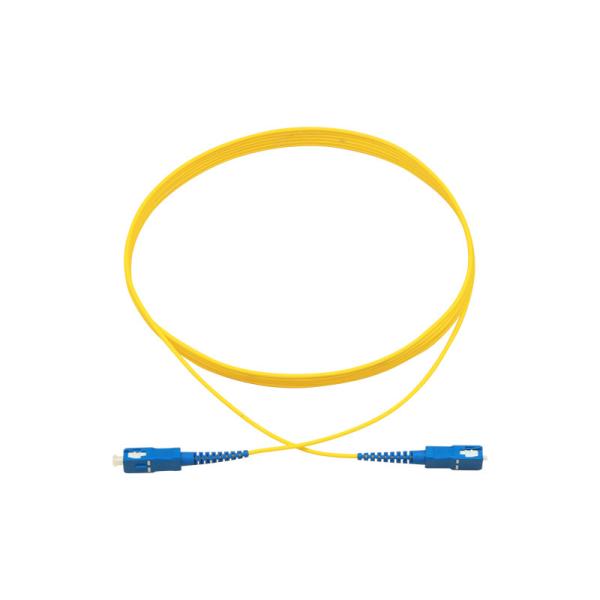

3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper
Specifications
Brand Name :
QualitY or QY
Model Number :
QPCST UPC
Certification :
ISO9001
Place of Origin :
Dongguan， China
MOQ :
100pcs for minium order
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2000 Piece per day ST patch cord
Delivery Time :
8-12 working days
Packaging Details :
PE bag or customized package & cartons
Name :
SC UPC optic fiber patch cord
Connector :
SC UPC
RL :
<0.3dB
Material :
PVC,LSZH
Color :
Yellow
Length :
1m 2m 3m or Customized
Fiber :
G652D G657A
Cable OD :
2.0mm 3.0mm
Description

3meters 2.0mm SC UPC-SC APC Simplex Single Mode G652D Optical Fiber Patch Cord Fiber Jumper

Overview

QY’s fiber patch cables are available in a wide range of fiber types and connector combinations, all designed to cost-effectively optimize performance throughout a data center or central office. These fire- and gas-resistant cables are rigorously tested for repeatability and loss and feature low insertion loss and attenuation.

Features

  • ROHS, CE compliant
  • Small size, lightweight, easy to strip
  • Soft, flexible, easy to lay and splice
  • Good mechanical and environmental performance
  • Helps minimize transmission problems
  • Good mechanical and environmental performance

Application

  • Teletechnocal Networks
  • CATV Networks
  • LAN & WAN
  • Optical Network Equipment
  • Industry and Military Application
  • Equipment to equipment patching
  • Termination enclosure to equipment patching

specification

Item Name

Unit

 SC/UPC - SC/UPC Fiber Optic Patch Cord
Grade S (Standard) Grade P (Premium)
Fiber Type um 9/125 9/125 (Corning)
Polishing --- UPC
Insertion Loss dB ≤0.3 ≤0.1
Return Loss dB ≥50 ≥55
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Operating Temp. ℃ -25 ~ +70
Durability times ≥1,000
Tensile Strength N ≥90(Φ3.0), ≥70(Φ2.0)
Diameter mm 0.9, 2.0, 3.0, or customized
Fiber Count --- Simplex
Material --- PVC, LSZH
