Specifications
Brand Name :
Qingying
Model Number :
OM2/OM3/OM4 Fiber Optic Cable
Certification :
IEC 60794-2-10/11
Place of Origin :
China Dongguan
MOQ :
20pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
10000Km per week
Packaging Details :
2km 4km Per Reel
Jacket :
PVC/LSZH
Fiber Type :
OM1(62.5/125),OM2(50/125)
Ferrule Endface: :
UPC/PC
Connector Type: :
SC-LC
Cable Length :
1/1.5/3/5/10/20m or custom
Catagory :
Fiber Optic Patch Cord

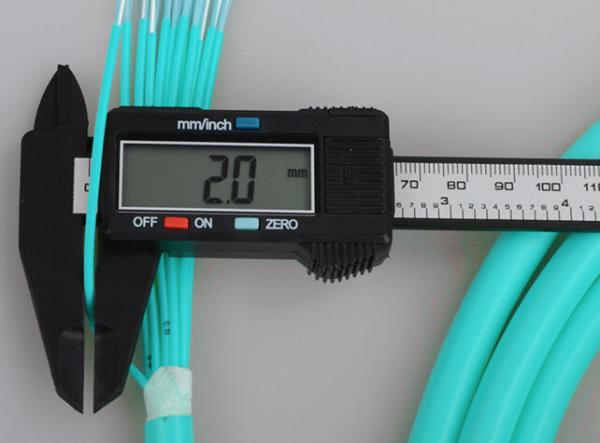

Cable Outer Diameter: :
0.9/2.0/3.0mm
Model Name :
Indoor Fiber Cable OM2/OM3/OM4
Description

OM2 / OM3 / OM4 Indoor Fiber Optic Cable Drum High Temperature Stability

Product Description

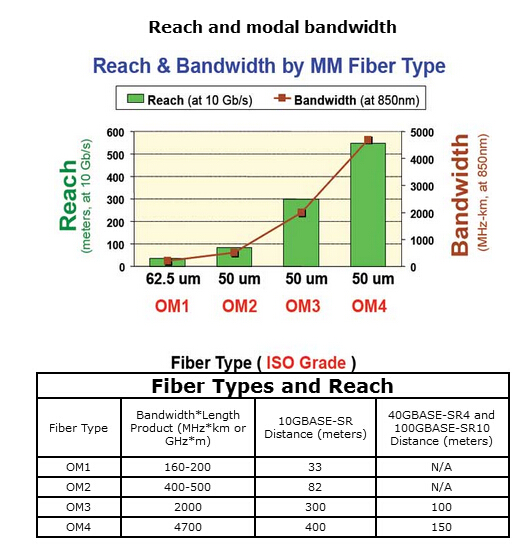

Multimode fibers are identified by the OM (“optical mode”) designation as outlined in the ISO/IEC 11801 standard.

  • OM1, for fiber with 200/500 MHz*km overfilled launch (OFL) bandwidth at 850/1300nm (typically 62.5/125um fiber)

  • OM2, for fiber with 500/500 MHz*km OFL bandwidth at 850/1300nm (typically 50/125um fiber)

  • OM3, for laser-optimized 50um fiber having 2000 MHz*km effective modal bandwidth (EMB, also known as laser bandwidth), designed for 10 Gb/s transmission.

  • OM4, for laser-optimized 50um fiber having 4700 MHz*km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.

Features:


---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Applications:

---Fiber Optic communications system;

---Fiber Optic access networks;

---CATV

---Fiber Optic data communication

---Fiber Optic Test Equipments

Technical specifications:

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Endface Type PC UPC APC PC PC
Insertion Loss db ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss db ≥45 ≥50 ≥60 - -
Insert-pull Test db ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability db ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80

OM2 / OM3 / OM4 Indoor Fiber Optic Cable Drum High Temperature Stability
