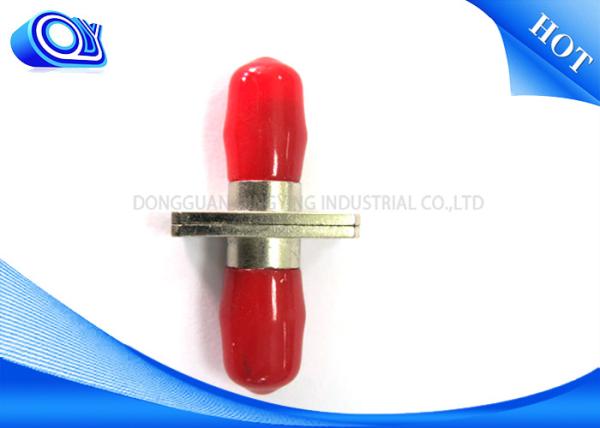

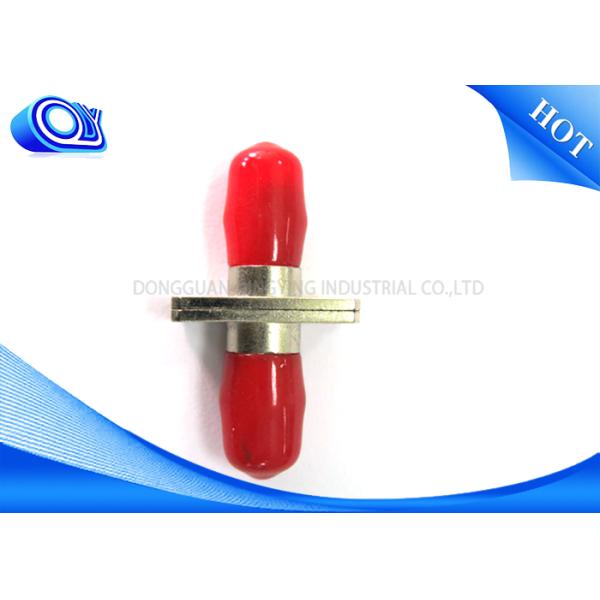

ST Square Mount Metal ST UPC Metal type 0.2dB insertion loss Fiber Optic Cable Adapter For Communication
ST Square Mount Metal ST UPC Metal type 0.2dB insertion loss Fiber Optic Cable Adapter For Communication
Specifications
Brand Name :
Qingying or QY
Model Number :
ST Square Metal Adapter Fiber Optic Adapter
Certification :
ISO90012015
Place of Origin :
Dongguan China
MOQ :
20pcs for minium order
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
250000pcs per week FC SM Square Copper Adapter
Packaging Details :
PE bag or customized package & cartons
Model Numbe :
ST Square Metal Adapter Fiber Optic Adapter
Connector Type: :
ST
Package Size： :
46 X 33 X 23 CM:(5000PCS)
Insertion loss: :
< 0.2DB
Durability: :
>1000 mating times
Operation Temperature :
-40 ~+75 degree
Sleeve Material :
Zirconia
Channels number: :
Simplex , Duplex
Application :
Fiber Optic Communication
Description

ST Square Mount Metal ST UPC Metal type 0.2dB insertion loss Fiber Optic Cable Adapter For Communication

Desctirption:
ST Compatible adapters are comprised of a metal outer obdy and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. Then combination of a ceramic /phosphor bronze alignment sleeves and precision metal housing provides consistent long-term mechanical and optical performance .
Features :
Available in square ,D-shaped and rectangular mount .
Coupling body ,zinc alloy for long life.
Thread with nuts or snap-in coupling,easily install in panel mount .
compliant with TLA/ELA 568A, Bellcore G-326 and IEC874-10
All parts compliant with Rohs.
Application :
Telecommunication
CATV
LAN &WAN
Network
Broadband
FTTX

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.

Feature:

1, LC/SC/FC/ST Type Optional

2, UPC or APC Optional

2, SM or MM Optional

3, With/Without flange Optional

4, Simplex , Duplex or Quad Optional

5, Zirconia Sleeve ,Compact design

6, Low insertional loss, High return loss

7, Comply with IEC, Telcordia GR 326 and JIS standard

Application:

.CATV

.Telecommunication networks

.Test equipment

.Local Area Networks(LANs)

.Data processing networks

Factory Scale:

Total Area of: 8000 square meters

Factory history: 10 years

Production Staff: 60 to 100
QC Staff: 10 to 12
R&D Staff: 5 to 10

Certificates:

ISO9001:2015

SGS

RoHS

CE

Logistics Ability:

Arrange the Mixed logistical for Election delivery as By Air and By Sea,

over 10 years’ experience for logistical arrange.

Features;

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability

Delivery Time:

Material Preparation Time: 3 days (or inventory)

Production & Assembly Time 7 days

Testing & Packaging Time: 2 days

Total Delivery Time: 12 days in 20,000pcs

for safe delivery lead time.

The faster delivery could be negotiable.

Applications:

1. Asynchronous Transmission Mode(ATM) Package for 5000PCS :

2. Passive optical networks (PON) Quick Connector Package dimensions :45 X 25 X 24 CM

3. Fiber to The Home (FTTH) Fiber optic adapter Package dimensions :46 X 33 X 23 CM

4. Local Area Networks (LAN)

5. Cable Television (CATV)

6. Test Equipment

ST Square Mount Metal ST UPC Metal type 0.2dB insertion loss Fiber Optic Cable Adapter For Communication
