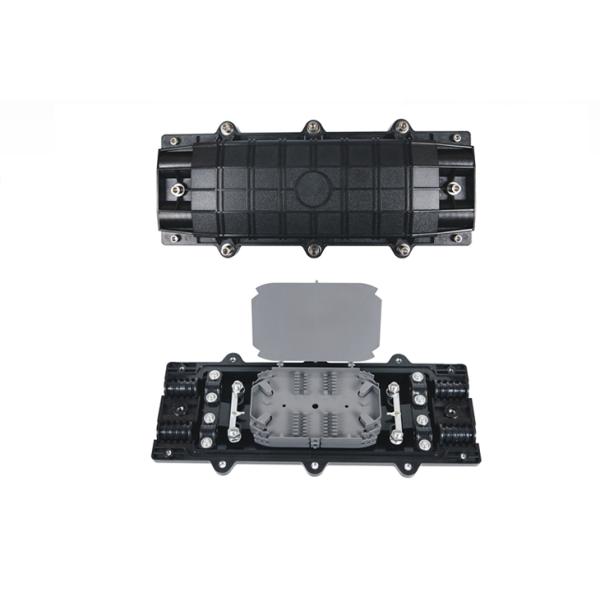

High Grade PC Plastic Fiber Optic Splice Closure 12 - 24 Cores For Aerial
High Grade PC Plastic Fiber Optic Splice Closure 12 - 24 Cores For Aerial
Specifications
Brand Name :
Qingying or QY
Model Number :
High Grade PC Plastic Fiber Optic Splice Closure
Certification :
ISO9001 2015
Place of Origin :
Dongguan China
MOQ :
50 pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
8- 12 working days
Packaging Details :
Package Size : 400*180*85
Type :
optical fiber junction box
Material :
Plastic PC
Insulation resisitance :
≥2x104MΩ
Diameter of Fiber :
Φ16mm Φ20mm Φ23mm
Color :
Black
panel type: :
12-24 cores
Max :
48 cores
Dimension :
400*180*85
Description

High Grade PC Plastic Fiber Optic Splice Closure Direct-buried ,Aerial ,Pipelined

Horizontal Fiber optic splice closure of QYS202 is suitable for single core and ribbon fiber ,they are installed on wall ,direct-buried ,aerial ,pipelined .

Ø The housing of box is made of high-grade PC plastic, the tray is made of ABS plastic ,these material to ensure the lifetime.

Ø We use speical rubber to seal the cover ,which not only ensure the sealing proformance ,but also increases the oxidation resistance ,it completely reaches the repetition sealing requirements and realized the repetition use of the products.

Ø The installation accessories provided:sealing tie 2pcs,sealing tape 1pc,pvc insulation tape 1pc,splice pipe ,nylon tie 4pcs,plastic spanner 1pc,sticker,hanging hook 2pcs,Hex key2pcs

Main technical Indexes:

Ø Seal performance : the pressure in the closure is 100Kpa,put the closure into the water for 15minutes,there is no air bubble ,and observed it for 24 hours ,there is no change of air pressure

Ø Re-entry performance:after 3 times of normal operations ,it can still be up to the seal performance standard

Ø Insulation resisitance: ≥2x104MΩ

Ø Withstand voltage strength :there is no puncture and no arc-cover after the function of 15KVDC/1min.

Model Dimension (MM) G.W./N.W(kg) Material Inlet/Outlet Diameter of fiber cable Capacity of FOSC Dimension /CTN (cm)
GJS202 400x180x85 1.7/1.3 PC 2inlets and 2outlets Φ20mm Bunchy:12-48(cores) 51*39*41.5
