380V Coil Forming Machine For Small Medium Motor Stator
380V Coil Forming Machine For Small Medium Motor Stator
380V Coil Forming Machine For Small Medium Motor Stator
380V Coil Forming Machine For Small Medium Motor Stator
Specifications
Brand Name :
Nide
Model Number :
Z3XL1-150-160C
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
900 sets per year
Delivery Time :
35 working days
Packaging Details :
Wooden case suitable for sea transportation
Name :
Small and medium motor stator coil forming machines
Machine size :
Middle size
After-Sales Service :
Overseas Service Center Available
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Warranty :
1 Year
Color :
customized
Voltage :
380V
Description

Small and medium motor stator coil forming machine For Motor Manufacturing

The stator coil forming machine is suitable for forming the over-hang coil of the small and medium size stator , after the stator coil lacing process. Widely used in AC motors, air conditioner motors, compressor motors, fan motors, washing machine motors, pump motors, etc.

Feature

The stator coil forming and shaping machine is vertical design minimizes the space requirement.

Easy operation.

One set Mold is applicable to different stack height of stators.

Using upper, lower and center axis molds to complete the forming process.

Working principle

The stator is put on the left side of the roller to form up inner side of coil, then put the stator on the right side of forming die to form up height, inner and outer side of the coil finally to ensure the over-hang coil dimension would meet the required specification.

Technical Data:

Product name: Small and medium motor stator coil forming machine
Thickness of stator lamination: 18mm-160mm
Stator ID : Φ 30mm- Φ 120mm
Max outer diameter of stator: Φ 200mm
Displacement of oil pump: 20F
Input: 380V /50Hz
Power: 1.5KW
Machine productivity: around 1500pcs/ 8hours
Dimension: 650mm × 900mm × 2300mm
Weight: ≈ 550kg

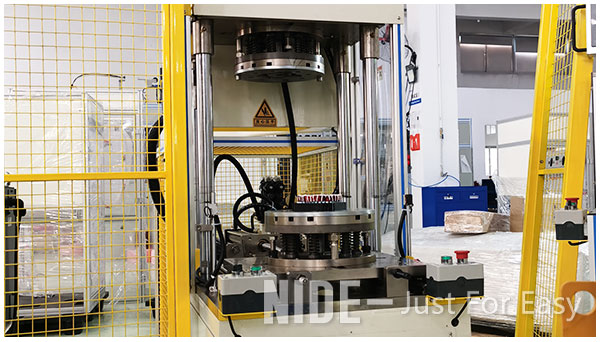

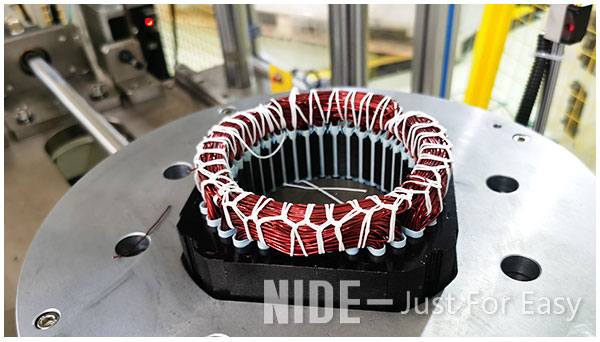

Picture show:

380V Coil Forming Machine For Small Medium Motor Stator

380V Coil Forming Machine For Small Medium Motor Stator

The motor stator coil forming machine video:
