Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
Specifications
Brand Name :
NIDE
Model Number :
NDPJ-JYZ-6641
Certification :
CE
Place of Origin :
China
MOQ :
100 kilogram
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000000 kilogram per month
Delivery Time :
30 working days
Packaging Details :
Wooden case suitable for sea transportation
Product name :
electrical insulation material
Color :
customized
Used for :
motor winding
Type :
motor insulation paper
Description

Introduction

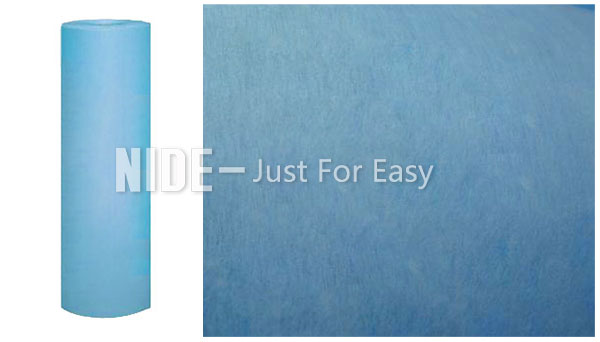

The 6641 DMD mylar polyester film electrical insulation material is a three-layer composite material made of one layer of polyester film and two electrical polyester fibre nonwovens and glued by F class resin. With good mechanical property and electrical property, polyester non-woven fabric has good adsorption capacity and can absorb resin during impregnation.

Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper

Application

It is widely used in slot, phase and liner insulating of motors,Interlayer insulation in the transformer. It is also widely used in automatic coil inserting machine for wedge inserting.

Specification

Thickness : 0.13mm-0.50mm

Sheet: 1000*980mm

Coil: maximum width 1000mm

Strip: minimum width 5mm

Thermal class : F

Working temperature: 180 degree

Color: Blue

Normal Bond strength: no delamination

Bond strength at 180±2°C: No delamination, no blister, no adhesive flow

Package

Inner packaging: polyethylene film

Outer packaging: carton or woven bag

Storage conditions

Can be stored indefinitely under normal conditions (20°C, 50% r.h.)

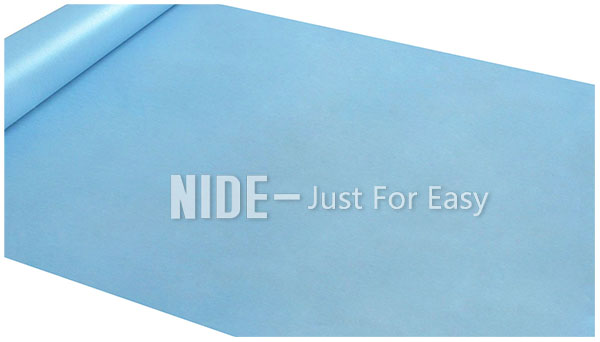

Picture show

Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper

Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper
