Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Multishaped Slot Washing Machine Stator Winding Machine
Specifications
Brand Name :
NIDE
Model Number :
ND-SW01E
Certification :
none
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 sets per year
Delivery Time :
60 working days
Packaging Details :
Wooden case which is suitable for sea transportation
Prouduction name :
Multi-shaped slot stator coil winding machine
Application :
Washing machine BLDC/ brushless motor stator coil winding
Winding method :
needle winding technology
color :
customized
type :
Automatic
winding station :
1
Voltage :
380V
Weight :
about 300kg
Description

Automatic Multi-shaped slot stator winding machine for BLDC washing machine motor manufacturing

The automatic multi-shaped slot stator winding machine is used for Automation Washing machine electric motor engineering. The stator winding machine adopts needle coil winding technology, is suitable for Large and medium brushless motor multi-shaped slot stator , such as drum washing machine, turbo washing machine and water pump motor , it adopts single working station structure. The BLDC stator coil winding machine can automatically complete the winding process, high efficiency, safety.

The BLDC stator winding machine offers complete programming freedom, so you can decide where to anchor the initial starting wire before winding, whether to run the cycle clockwise or anticlockwise, and all the necessary position changes to complete the process.

Application

The BLDC stator winding machine is use for Large and medium Special-shaped slot electric motor stator coil winding, such as drum washing machine, turbo washing machine and water pump motor, BLDC , brushless DC motor, etc.

Specification:

Product name: Automatic BLDC multi-slot stator winding machine for washing machine motor
Type: Automatic
Stator type: Same-shaped slot stator or special-shaped slot stator, customers can set according to their needs
Stator ID: 45-180mm
Stator OD: 60-210mm
Wire dia.: 0.15-1.2 mm
Stack length: 5-160mm
Winding Method: Needle coil winding
Winding speed: 50-400 r/min
Winding stations .: one
Air pressure: 0.5MPa～0.7 MPa
Voltage: 380V/50HZ three phase four wires
Power: 10 KW
Dimension: 1200L*750W*1900H
Weight: About 300kg

Picture show:

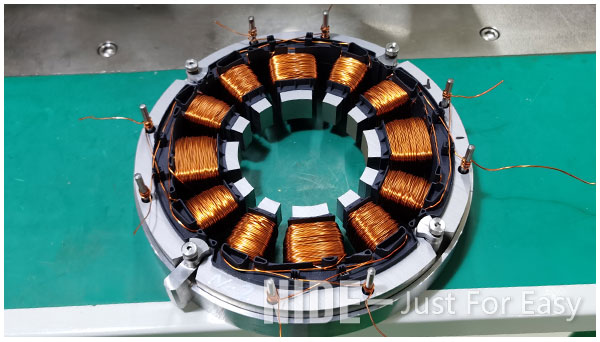

The automatic stator winding machine is used for Special-shaped slot stator coil winding

Multishaped Slot Washing Machine Stator Winding Machine

Multishaped Slot Washing Machine Stator Winding MachineMultishaped Slot Washing Machine Stator Winding MachineMultishaped Slot Washing Machine Stator Winding MachineMultishaped Slot Washing Machine Stator Winding Machine
