Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
Specifications
Brand Name :
Nide
Model Number :
RX4-650
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
65 working days
Packaging Details :
Wooden case suitable for sea transportation
Supply Ability :
600 sets per year
Name :
Big stator coil winding machine 、 Stator Wire Winding Machine
Working station :
one
Certificate :
CCC
Customized service :
available
used for :
big powder motor
type :
middle
Description

Full automatic Horizontal big wire electric motor stator toroid coil winding machine

(1) Application

This automatic Big powder motor stator Coil Winding wire Machine Stator Wire Winding Machine is suitable for winding the coil for big power motor.

(2) Main technical parameter:

Production name: RX4-650D Automatic Big Stator Coil Winding Machine
Wire diameter: 0.3~1.5mm
Swing diameter: 350~650mm
Winding head: 1
Applicative frame size: 200, 225, 250, 280
Screw stroke: 400mm
Max RPM: 160RPM
Max wire number: ≤20 pcs
Power supply: 380V/50/60Hz 2.2KW
Air supply: 0.4MPa
Weight: 800Kg
Dimension: 1500*1700*1550mm

(3) Machine function and characteristic:

The automatic Big powder motor Stator Coil Winding Machine adopts special purpose controller to achieve the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc.

The Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.

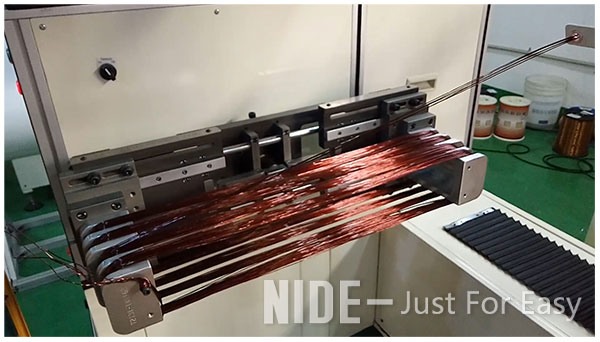

The big stator coil winding machine working picture 1

Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine

Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine

The big stator coil winding machine working picture video 2

Horizontal Toroid Full Automatic Coil Winding Machine Stator Wire Winding Machine
