Single Side Stator Lacing Machine Horizontal With Od Ranges 175 To 300mm
Single Side Stator Lacing Machine Horizontal With Od Ranges 175 To 300mm
Single Side Stator Lacing Machine Horizontal With Od Ranges 175 To 300mm
Single Side Stator Lacing Machine Horizontal With Od Ranges 175 To 300mm
Specifications
Brand Name :
Nide
Model Number :
BXIW1-260/300A
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
35 working days
Packaging Details :
The motor stator coil lacing machien is suitable for sea transportation
Supply Ability :
120 sets per year
Stator I.D :
110~210mm
Stator stack height :
100~260mm
Weight :
450Kg
Dimension :
1160*1200*1500mm
Description

Automatic Horizontal Single Side Stator Lacing Machine , Stator OD Ranges from 175~300mm

Quick Detail:

1. This machine is PLC programming.
2. The tooling is movable, and convenient for stator fast laoding and unloading.
3. The stator OD ranges from 175~300mm.
4. This machine is horizontal frame-structure.

Description:

The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design,the servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This horizontal single side stator winding lacing machine is suitable for the big stator with high winding over-hang. The tooling is movable, and convenient for stator fast laoding and unloading, hence to reduce the labor strength effectively.

Technical parameter:

Stator I.D

110~210mm

Stator stack height

100~260mm

Stator O.D

175~300mm

Over-hang height

20~65mm

Slot number

8~48 slots

Power source

AC 220V±10% 50/60Hz

Total power

0.75KW

Weight

450Kg

Dimension

1160*1200*1500mm

Machine function and characteristic:

It is in horizontal style. Servo motor completes thread hooking; PLC and HMI could set up jumping height of hooking needle, slot-by-slot lacing, slot-skipping lacing or fancy lacing. It is applicable for the stator of multi-height coils and heavy stator. Horizontal style is movable, lifting and direction-adjustable, which is convenient for the lacing and efficiently reduce the labor strength.

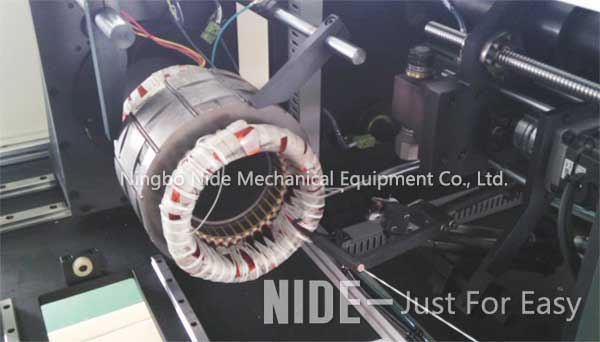

Automatic stator strapping machine tie line diagram 1:

Single Side Stator Lacing Machine Horizontal With Od Ranges 175 To 300mm

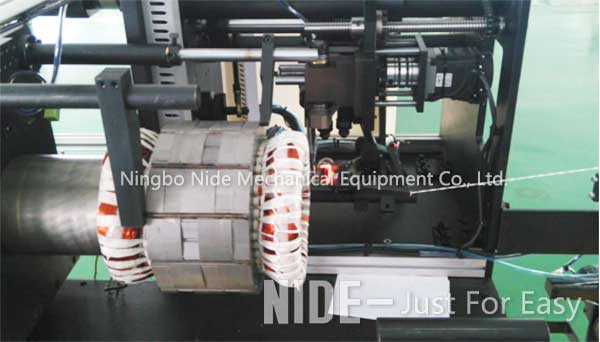

Automatic stator strapping machine tie line diagram 2:
