Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
Specifications
Brand Name :
Nide
Model Number :
ND-DH-5Z1
Certification :
None
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
60 sets per year
Delivery Time :
50 working days
Packaging Details :
Wooden case suitable for sea transportation
color :
customized
controlled :
PLC
Power :
220V
Application :
Motor Rotors
Balancing speed :
900~500rpm
Condition :
New
Armature weight :
0.1~1.6Kg
Armature diameter range :
Max 200mm
Description

Automatic Positioning Weight Added Rotor Balancing Machine for Motor Rotors

This type of armature balancing machine can test the unbalancing weight and it do the balancing by weight adding process.


(1) Machine function and characteristic
This machine automatically measures the unbalancing amount of the armature, automatically stops the armature at the unbalancing position
No need to mark on the armature (such as reflective sheet, black mark an so on)
Imbalance point positioning automatically
Low operation skill requirement to staff
Reduce the complexity of the machine operation
PLC control
Operator needs to stick the balancing mud onto the unbalancing position manually


(2) Main technical data


Armature lamination length
10~200mm

Armature diameter range
Max 200mm

Armature weight
0.1~1.6Kg

Unbalancing value
0~600g.mm/kg

Driving method
Belt

Power
220V

Balancing speed
900~500rpm

Weight
250KG

(3) Applications:
The machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
the working station. Armature should be put on the belt. Then it will do the balancing,and the unbalancing value will be displayed in the touch screen.

(4) Operating procedures:

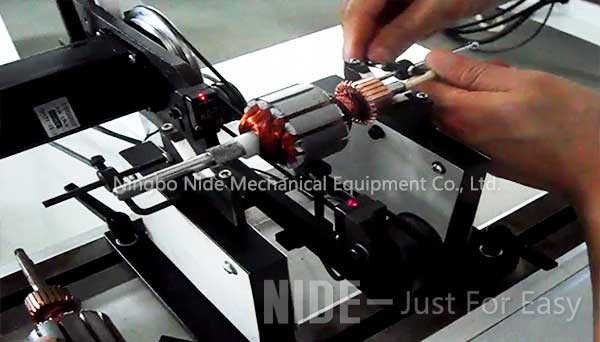

1.put the motor rotor on the belt line of the armature rotor balancing testing machine
Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors

2.The motor armature rotor balancing testing machine is working :Rotating rotor

Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors

3Finished test.

Weight Added Rotor Balancing Machine Automatic Positioning For Motor Rotors
