Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-LWD-100PSJ-2
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
color :
customized
used for :
DC motor and universal motor
conditon :
new
controlled :
PLC
Description

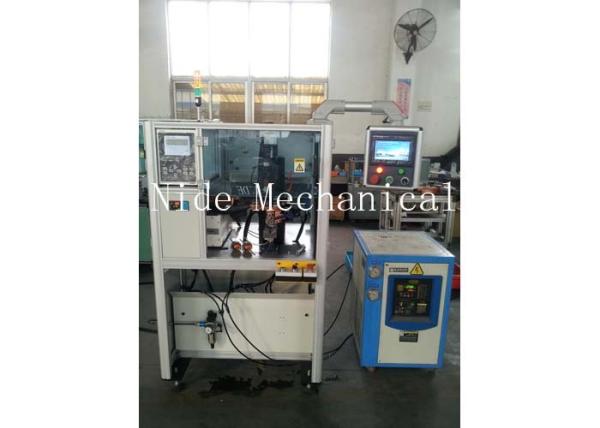

Single Head three phase Commutator Fusing Machine for DC motor

Quick Detail:

1. Model No.: ND-LWD-104CSPSJ-S2
2. Commutator OD ranges from15~40mm
3. This Commutator Fusing spot welding Machine is controlled by PLC.
4. This Commutator Fusing spot welding Machinehas colorful touch screen, and data setting can be done on the touch sreeen.
5. This Commutator Fusing spot welding Machinecan weld both riser and hook type commutators.

Description:

This machine is applied to DC motor and universal motor. It is controlled by PCL, all the data setting can be done on the touch sreeen. It can weld both riser and hook type commutators. There are four power control method, namely secondary constant current, secondary constant voltage secondary constant frequency. This machine can automatically fuse, and operator only need to load and unload rotor.

Application:

This machine is applied to DC motor and universal motor. It can weld both riser and hook type commutators.


Specification:

1. Feeding method: automatic feeding. Loading and unloading
2. Parameter setting: touch screen and power parameter setting
3. Power control method: current feedback, high precision countercurrent
4. Commutator type: both hook type and raise type
5. Wire diameter: 0.1mm-1.2mm
6 Armature OD. φ10mm-φ50mm
7. Shaft OD: φ5mm-φ15mm
8. Commutator O.D.: φ15mm-φ40mm
9. Commutator slot/hook number: ≤36
10. current range: 0.5-50KA
11. Voltage range: 0.1-9.99V
12. Power range: 1.00-99.99KW
13. Power control method: secondary constant current, secondary constant voltage secondary constant frequency
14. Welding standard parameter range(1-63groups)
15. Electric parameter testing setting range: current: 00.00-99.99KA(0.01KA per unit), voltage: 00.00- 99.99V(0.01V per unit), Frequency: 00.00-99.99KW(0.01KW per unit)
16. Cooling method: water cooling
17. Air source: 4kg/cm2—6kg/cm2
18. Power supply: three phase AC380V±10% 50HZ 40KW
19. Machine weight: 800kg
Competitive advantages:

This machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. It can be connected to a conveyor.
