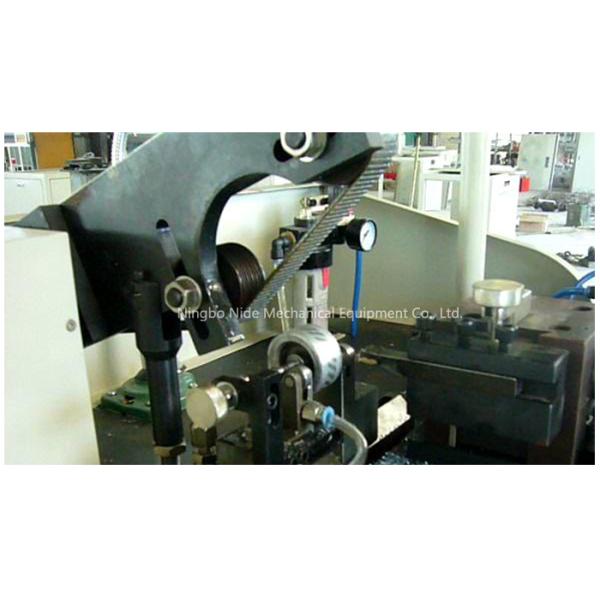

Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
Specifications
Place of Origin :
China
Brand Name :
Nide
Certification :
None
Model Number :
ND-WGK-2XA
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Wooden case suitable for sea transportation
Delivery Time :
35 working days
Payment Terms :
T/T, L/C
Supply Ability :
120 sets per year
Description

Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm

Quick Detail:

1. The rotor OD range 15~100mm.
2. This armature commutator turning machine has a wide application, like washing machine motor rotor, fan motor rotor, pump rotor etc.
3. The commutator turning machine can be used for different rotor, only need to change tooling.
4. The commutator turning maching is suitable for rotor OD range 15~100mm.
5. This commutator turning machine is easy to operate.
Description:

This type of Rotor commutator turning machine is suitable for precise lathing for mini-engine rotor's iro-coil sphere of vehicles, motorcycles engine and so on.It also can be used for commutator turning, only need to change a fixture.

Function and feature

1. Mechanical, electrical interlock. The warning reminder of sensor position and other troubles.
2. Blade support with hundreds meter, easy for observing and controlling the cutting degree of bladefeeding
3. Main engine rotary velocity is of non-step regulation, the blade feeding speed is same
4. Hi-pressure oil-spray lubricate the V shape seat and rotor shaft, the oil-spray time is of exterioradjustable
5. Auto, inching two working status, easy for adjustment

Technical parameter:

Concentricity

≤0.005mm

Rotor O.D

15~100mm

Surface roughness

Ra 1.6

Shaft length

50~350mm

Armature shaft diameter range

3~16mm

Max cutting volume

≤0.5mm

Power voltage

220V ±5% 50HZ

Liner velocity

0-400m/min (stepless regulation)

Main engine power

l.l.75KW

Armature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mmArmature Commutator Turning Machine CNC For Pump Rotor OD 15mm ~ 100mm
