RK3588 AI Box Computing Box With Generation Flagship Octa Core 64 Bit Processor
RK3588 AI Box Computing Box With Generation Flagship Octa Core 64 Bit Processor
RK3588 AI Box Computing Box With Generation Flagship Octa Core 64 Bit Processor
RK3588 AI Box Computing Box With Generation Flagship Octa Core 64 Bit Processor
Specifications
Brand Name :
YNH
Model Number :
733-BOX
Certification :
UL
Place of Origin :
China
MOQ :
100pcs
Price :
120-180 USD per pcs
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs per month
Delivery Time :
30 days
Packaging Details :
Cardboard packaging, each box contains 100 motherboards，Box size 57*39*31cm
CPU :
RK3 588 , Cortex-A76+Cortex-A55 octa- core, main frequency 2.4 GHz
GPU :
Mali-G610 M C 4
NPU :
Support 6Tpos computing power
Memory :
Standard 4G (8G/16G optional) LPDDR4
Internal memory :
EMMC 64G (32G/128G etc. optional)
Description

Chapter 1 Product Overview

YNH_733 RK3588 Computing Power Box with generation flagship octa-core 64-bit processor

1.1 Scope of application

The YNH-3588 box is a super computing box, commonly used in ARM PC, large-screen splicing, animation games, conference tablets, edge computing, industrial computers, TV player boxes, cloud servers, smart NVRs and other fields.

1.2 Product Overview

The YNH-3588 box uses Rockchip RK3588, a new generation flagship octa-core 64-bit processor. The chip comes with a 6TOPS computing power NPU, and is equipped with Android12.0/Ubuntu20.04/Debian11 system (the kernel is Linux5.10). The GPU uses Mali-G610 MC4, which has outstanding performance and high cost performance. It supports 8K video encoding and decoding, 8K display output, and has built-in multiple display interfaces; rich high-speed interfaces (TYPE-C, Gigabit Ethernet), easy to expand, all-aluminum alloy shell, conducive to heat dissipation, and uses aviation plug-in interface with good sealing; external cameras can be connected to achieve face detection, face recognition, attribute detection, etc.

1. 3 Product appearance

(The pictures are for reference only, the actual product shall be subject to the corresponding item number)

Chapter 2 Basic function list

Main hardware indicators
CPU RK3 588 , Cortex-A76+Cortex-A55 octa- core, main frequency 2.4 GHz
GPU Mali-G610 M C 4
NPU Support 6Tpos computing power
Memory Standard 4G (8G/16G optional) LPDDR4
Internal memory EMMC 64G (32G/128G etc. optional)
multimedia Support 8K video and multi-channel 4K video decoding, support multi-channel 4K video encoding
operating system Android12.0/Ubuntu20.04 /Debian11 system (kernel is Linux 5.10 )
Network support Ethernet *2 , 1000M
2.4G+5G dual-band wifi6 module , Bluetooth 5.4
Support 4G/5G, connect to PCIE 4G/5G module
USB interface 3, 2 USB3.0 ( one of which is TYPE-C- OTG ), 1 USB2.0
HDMI output 1 , up to 8K@60fps output
RTC Real Time Clock support
Timer switch support
System Upgrade Support U disk/ T card / network upgrade
Protection level IP56
power supply DC12V – 5A (±10%)
Operating temperature -20℃~60℃ (thermostat optional)
Operating humidity 10%~90%
Power consumption 10W MAX
Installation Desktop
Device size 2 35 mm*1 5 0 mm* 62.5 mm (length*width*height)

Chapter 3 Appearance Interface Description

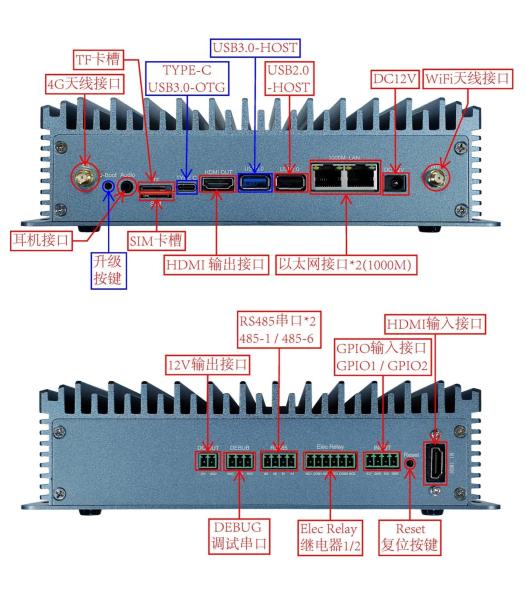

Interface Diagram

Dimensions

Item List:

1.　One 12V/ 3 A adapter

2.　A computing box

3.　A Wifi antenna

4.　4G antenna (optional)
