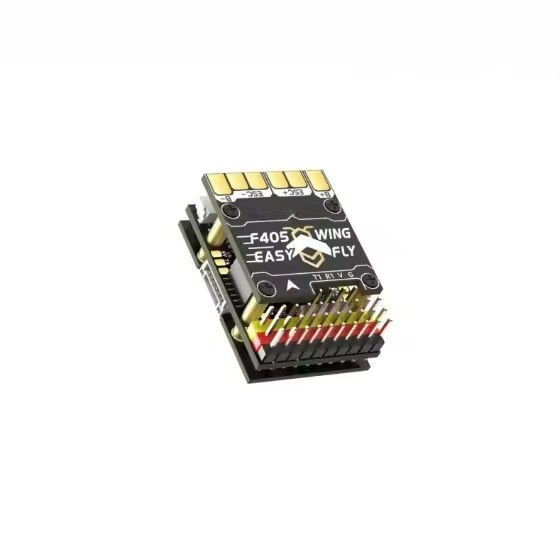

Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Arcosky F405 Mini Flight Controller Stm32f405 Gps Port 20x20mm Fixed Wing Long Range
Specifications
Brand Name :
ArcoSKY
Model Number :
Arco F405
Place of Origin :
Bangladesh
MOQ :
10
Price :
43.21
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
50000 pcs/mo.
Delivery Time :
5-10 work days
Packaging Details :
PB
Description :
FPV Drone Flight Controller
MCU :
STM32F405, 168MHz, 1MB Flash
Type :
Flight Controller
Barometer :
SPL006-001
OSD Chip :
AT7456E
Blackbox :
MicroSD Card Slot
Communication Interfaces :
UART, I2C, SPI, CAN
Compatibility :
Multirotor drones
Gyroscope :
MPU6000
ELRS/CRSF Receiver :
Supported, connected to UART1
SBUS :
Built-in inverter for SBUS input (UART2-RX)
LED :
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
Dual Analog Camera Switching :
Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. Both cameras should have the same video format, either PAL or NT
Supported FC Firmware :
INAV: SpeedyBeeF405WING (default) ArduPilot: SpeedyBeeF405WING
Weight :
5.6g
Description
Key Attributes
Compatible Brand
ArcoSky Others
Material
Metal
Private Mold
Yes
Place of Origin
Bangladesh
Brand Name
ArcoPV
Detail Information
Controller & Firmware
Product Item SpeedyBee F405 WING MINI Flight Controller Board
Description FPV Drone Flight Controller
Package Standard Package 100% Original
MCU STM32F405, 168MHz, 1MB Flash
OSD Chip AT7456E
Blackbox MicroSD Card Slot
Supported FC Firmware INAV: SpeedyBeeF405WING / ArduPilot: SpeedyBeeF405WING
Sensors & Support
IMU (Gyro & Accelerometer) ICM-42688-P
Barometer SPL006-001
GPS Support
FPV CAM Dual Analog Camera Switching (C1/C2)
VTX Direct Plug Support
ELRS/CRSF Receiver Supported, connected to UART1
SBUS Built-in inverter for SBUS input (UART2-RX)
Analog RSSI Supported, Named as "RS"
Power & Dimensions
Input Voltage 4-6S Lipo (14.8-26.1V)
BEC 5V/10V
Size 36x36x7.8mm
Mounting Hole 30.5x30.5mm M3
Weight 5.6g
Connectivity & Features
UART Serial Port 6 sets (USART1, USART2, USART3, UART4, UART5, UART6)
I2C 1x Used for magnetometer, digital airspeed sensor
ADC 4x (VBAT, Current, Analog RSSI, Analog AirSpeed)
PWM 12x (9x pin headers 2x solder pads 1x "LED" pad)
LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
Dual Analog Camera Switching Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. Both cameras should have same video format (PAL or NTSC)
```
Motor Setup
Motor 6 Motors / Y6
Packaging & Delivery
Selling Units Single item
Single Package Size 10X10X10 cm
Single Gross Weight 0.130 kg
