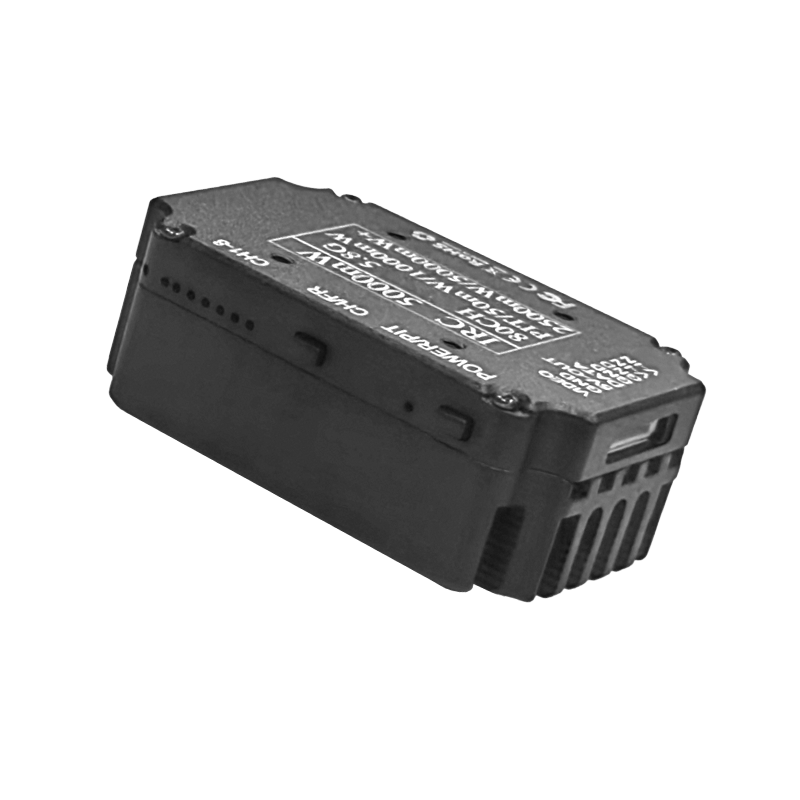

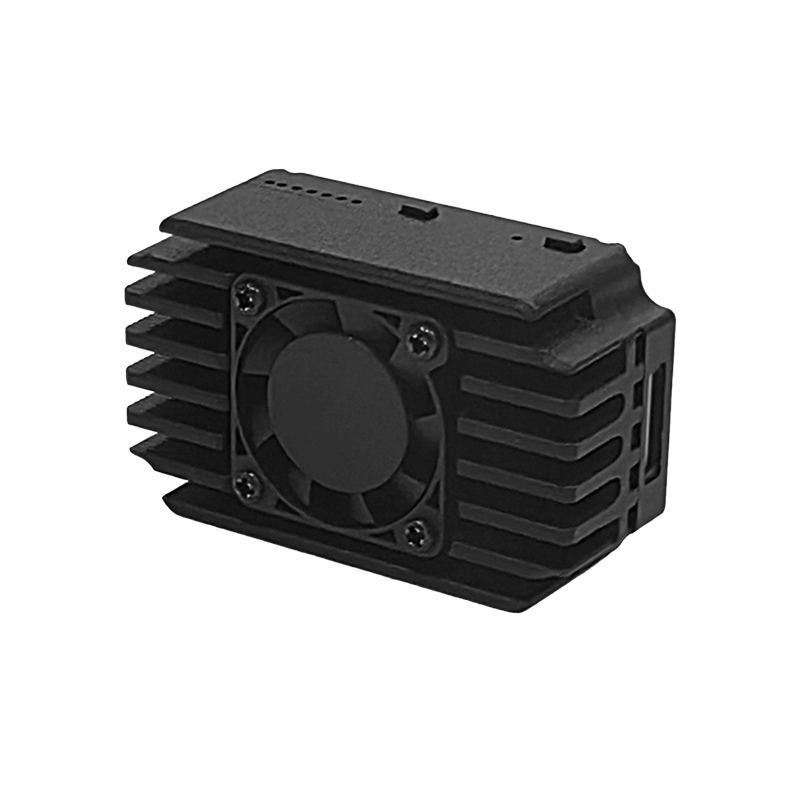

Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Glyph V4 5.8GHz 5W Analog VTX 5000mW High Power FPV Video Transmitter 80CH MMCX 7 - 36V
Specifications
Brand Name :
ArcoSKY
Model Number :
ArcoSky Glyph V4 5.8Ghz 5W
Place of Origin :
Bangladesh
MOQ :
5
Price :
/
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50000pcs/mo.
Delivery Time :
5-10 work days
Packaging Details :
PB
Power :
25mW/800mW/2000mW/5000mW/ Pit mode
Input Voltage :
DC 7~36V(2~8S Battery)
Current :
0.6A @5V (Power 5V to camera)
Protocol :
IRC Tramp
Output Interface :
MMCX
Video format :
PAL / NTSC
Frequency :
80 CH (4990MHz-5945MHz)
Power Supply Interface :
GH1.25-6P Connector
Size :
L53.5*W32.5*H115.5mm (without cable)
Weight :
45g(without cable)
Description
Model
Glyph V4 5.8Ghz 5W
Input Voltage
DC 7~36V (2~8SBattery)
Protocol
IRC Tramp
Channels
80 CH
ArcoSky VTX (5.8G 5W)
Power
25mW/800mW/2000mW/5000mW/
Pit mode
Current
0.6A @5V (Power 5V to camera)
Interface
MMCX
Video Format
PAL / NTSC
Frequency: 80 CH (A,B,E,F,R,L,U,O,H,X)
Parameters
VTX Specifications
Model ArcoSky Glyph V4 5.8Ghz 3W
Power 25mW/400mW/800mW/1500mW/3000mW/Pit mode
Input Voltage DC 7~36V (2~8S Battery)
Current 0.6A @5V (Power 5V to camera)
Protocol IRC Tramp
Output Interface MMCX
Video Format PAL / NTSC
Frequency 80 CH (4990MHz-594 5MHz)
Power Supply Interface GH1.25-6P Connector
Size L53.5*W32.5*H115.5mm
Weight 45g (without cable)
Frequency Table (MHz)
Channel CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band_A 5865 5845 5825 5805 5785 5765 5745 5725
Band_B 5733 5752 5771 5790 5809 5828 5847 5866
Band_E 5705 5685 5665 5645 5885 5905 5925 5945
Band_F 5740 5760 5780 5800 5820 5840 5860 5880
Band_R 5658 5695 5732 5769 5806 5843 5880 5917
Band_H 5653 5693 5733 5773 5813 5853 583 5621
Band_L 5333 5373 5413 5453 5493 5533 5573 5456
Band_U 5325 5348 5366 5384 5402 5420 5438 5600
Band_O 5474 5492 5510 5528 5546 5564 5582 5933
Band_X 4990 5020 5055 5080 5110 5140 5170 5200
