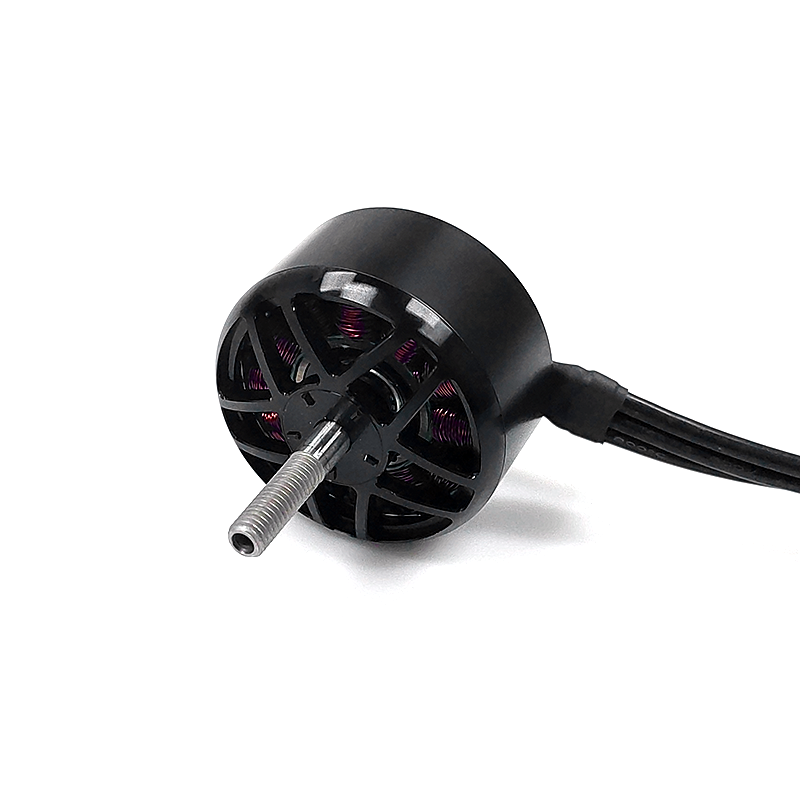

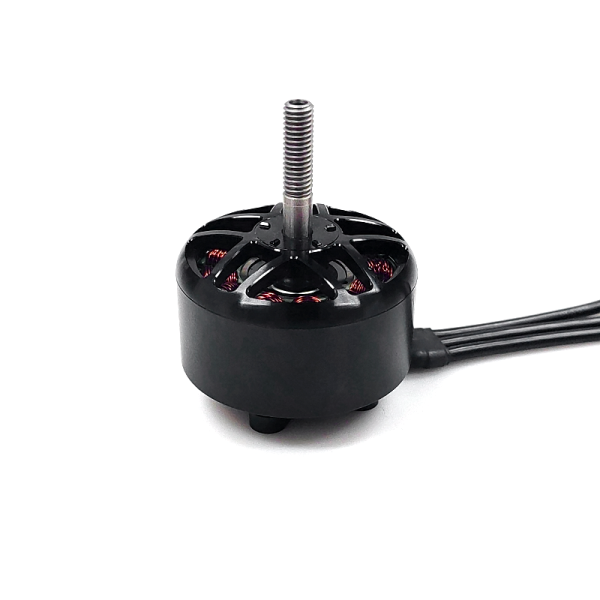

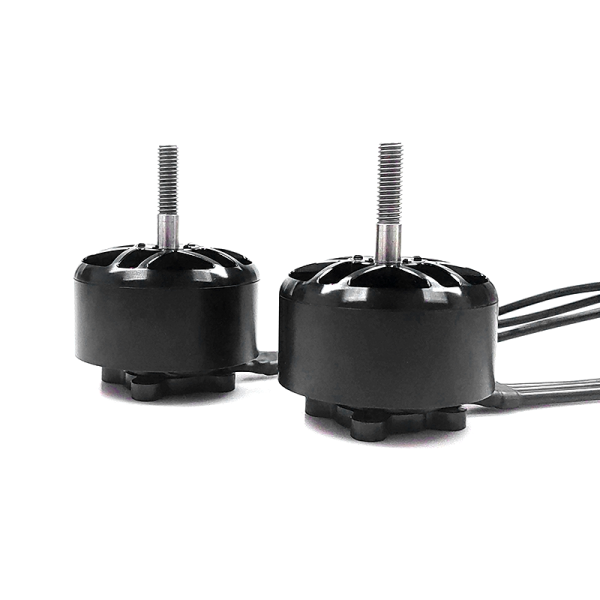

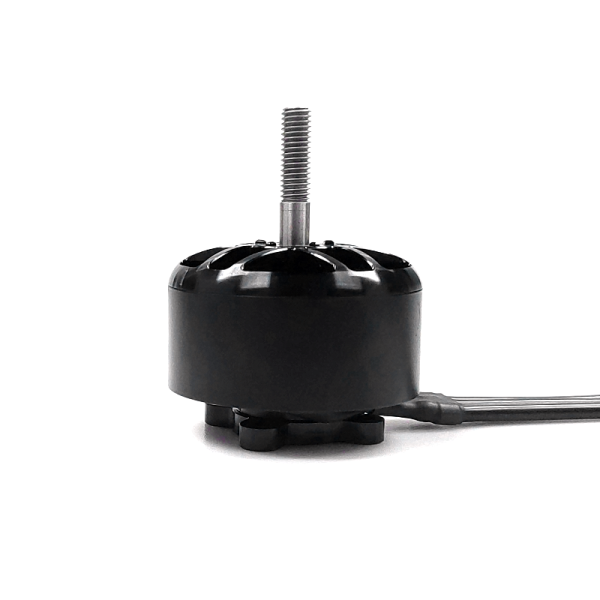

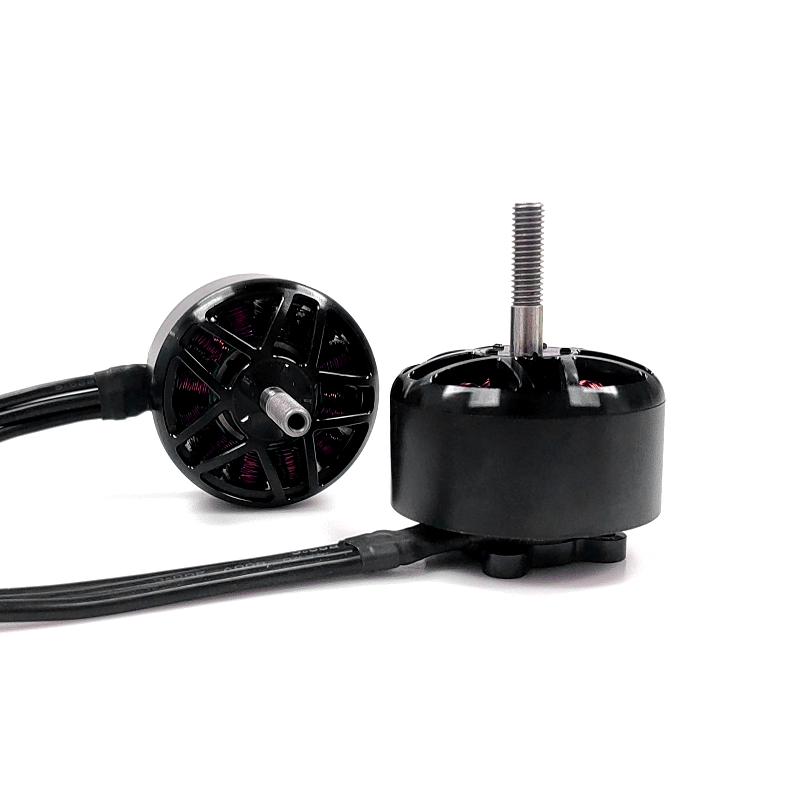

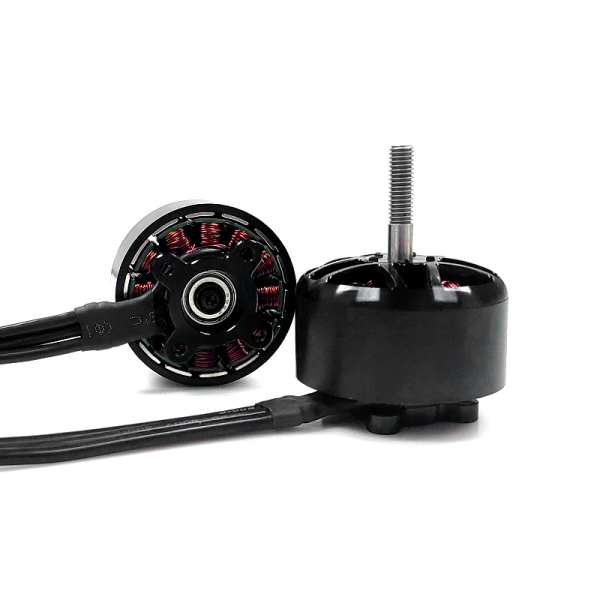

4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
4218-350KV Drone Motors 240g Weight 14S Rated Voltage 5508g Max Pull 1507 Propeller Configuration
Specifications
Brand Name :
ArcoSKY
Model Number :
4218-350 KV
Place of Origin :
Bangladesh
MOQ :
5
Price :
/
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50000pcs/mo.
Delivery Time :
5-10 work days
Packaging Details :
PB
Weight(with cable) :
240g
Internal Resistance :
59mΩ
Motor Wire :
14AWG-270mm
Configuration :
1507 Propellers
Shaft Diameter :
M6
Rated Voltage :
14S
Idle Current :
3.0A
Peak Current :
54.81A
Max Power :
1740W
Motor Mount Dia :
M4,Ø30
Max Pul :
5508g
Description
Motor
4218-350KV
Rated Voltage
14S
Peak Current
54.81A
Max Pull
5508g
ArcoSky Motor (4218-350KV)
Weight (with cable)
240g
Internal Resistance
59mΩ
Motor Wire
14AWG-270mm
Configuration
1507 Propellers
Test data: Propellers@GF7037
Detail Information
Parameters
Motor 4218-350KV
Weight (with cable) 240g
Internal Resistance 59mΩ
Motor Wire 14AWG-270mm
Configuration 1057 Propellers
Shaft Diameter M6
Rated Voltage 14S
Idle Current 3.0A
Peak Current 54.81A
Max Power 1740W
Motor Mount Dia. M3, Ø30
Max Pull 5508g
Test Data (Propellers@GF7037)
Throttle (%) Voltage (V) Current (A) Tension (G) Power (W) Efficiency (G/W)
50% 33.25 7.624 1719 253 6.78
60% 33.06 15.706 2290 519 4.1
70% 32.77 24.706 3569 816 4.37
80% 32.41 35.911 4421 1163 3.80
90% 32.00 47.371 5140 1515 3.39
100% 31.76 54.807 5508 1740 3.16
