Multi-Purpose Food Grade 304 Stainless Steel Laboratory Sieve test Filter Sieve Mesh

Stainless Steel Mesh Introduction

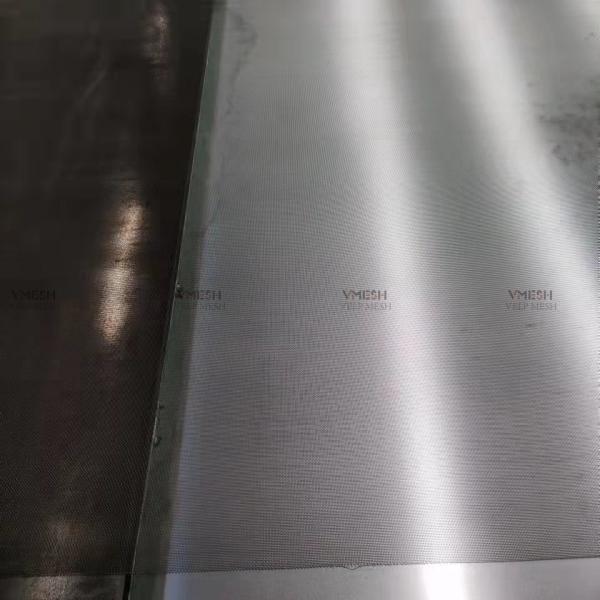

We maintain huge stocks of mesh. Rolls of woven wire stainless steel mesh are readily available in a wide range of mesh specifications. We keep stocks with a mesh count from 2 mesh (with a 1.6 mm wire diameter) through to 500 mesh (with a 0.025 mm wire diameter). These provide apertures from 11.1 mm down to 0.025 mm (25 microns). Primarily of stainless steel, woven wire mesh stocks are also held in a range of other materials. These include mild steel, brass, phosphor bronze, copper, monel, aluminium . Furthermore, we stock Type 304 and Type 316 stainless steel mesh in most specifications.Types of Weave

Our stainless steel sieve mesh is made with food-grade 304 steel, perfect for safe use in labs, kitchens, and factories. It catches tiny particles while letting liquids pass through smoothly. You can use it for testing grain sizes, filtering food liquids, or lab experiments.

Stainless Steel Woven Mesh Material

​

Types of Weave

Mesh can be woven in several ways.

The largest demand is for plain weave woven mesh. For the finer meshes, twilled weave woven mesh is available from our stocks. We also supply plain dutch and twilled dutch weaves. Of note, the dutch weaves allow for the finest filtration, down to 0.006 mm (6 microns)

Applications:

Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc.

This weave permits a heavier wire diameter to be used than would be possible in a plain weave wire mesh with similar mesh count.

Product Features

Safe Material
Made of 304 stainless steel that won’t rust or contaminate food. Easy to wash and reuse.

Multiple Sizes
Choose from 20-100 mesh sizes (or 200-700 micron). Each mesh has even holes for accurate filtering.

Strong & Lasting
Woven in plain or twill patterns for extra strength. Handles heat up to 80°C and heavy use.

Many Uses
Works as a flour sifter, lab test sieve, liquid filter, or for garden/industrial screens.

Custom Options

Tell us what you need! We can make:

Special mesh sizes (1-635mesh design)

Round, square, or roll shapes

Edge frames or hooks for hanging
Custom orders ship in 3-7 days.

Packing:

Woven wire mesh is available on the roll or cut to size.

Provide fine and strict packaging to ensure that the goods will not be damaged.

Paper pipe inside of the mesh --> then waterproof paper --> moist proof paper --> bigger paper pipe --> poly-wood carton.

Or we can pack as per your request.
