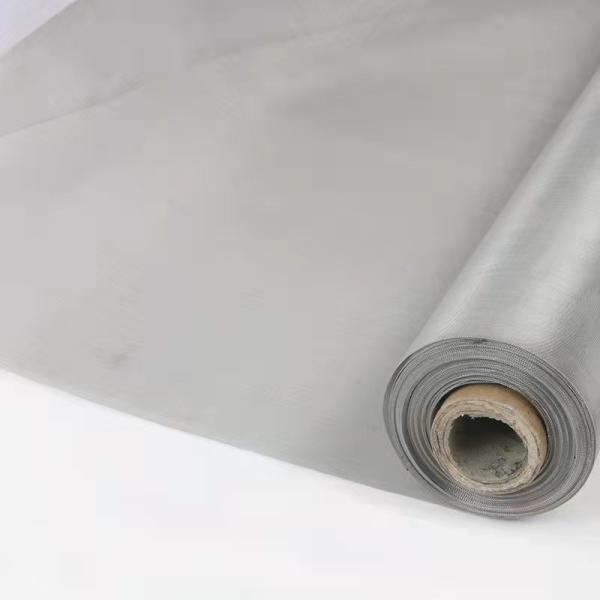

Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Industrial Filtration
Specifications
Brand Name :
VELP
Model Number :
26
Certification :
SGS
Place of Origin :
China
MOQ :
1 roll
Price :
USD10-USD20/SQM
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
30000 rolls month
Delivery Time :
5-10 work days
Packaging Details :
wooden case+waterproof paper
Product name :
Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Filter Mesh Cloth
Application :
Filter, chemistry.
Material :
Stainless Steel 304 316
Advantage :
Large stock, fast delivery, best quality
Wire diameter :
0.1 - 1mm
Width :
1*30m
Technique :
Woven mesh cloth
Feature :
Acid-resisting, Anti-corrosion
Description

Ultra Fine 304 316 316L Stainless Steel Woven Wire Mesh for Filter Mesh Cloth

Stainless Steel Mesh Introduction

Engineered for high-stakes filtration operations, our Ultra-Fine Stainless Steel Woven Wire Mesh utilizes high-grade 304, 316, and 316L stainless steel alloys. Featuring micron-level precision weaving, this mesh delivers exceptional particle retention capabilities – ideal for pharmaceutical purification, food-grade powder sifting, chemical separation, and precision laboratory filtration.

Each roll is manufactured under controlled conditions to ensure uniform aperture consistency.

If you are interested in our product, please contact me as soon as possible.

Stainless Steel Woven Mesh Material

Product Name:

 Woven Wire Mesh, Wire Cloth

Stainless Steel Grade:

 304, 304L, 316, 316L, 310s, 904L, 430, etc

Special Material Options:

 Inconel, Monel, Nickel, Titanium, etc

Wire Diameter Range:

 0.02 - 6.30mm

Hole Size Range:

 1 - 3500mesh

Weave Types:

 Plain Weave,Twill Weave,Dutch or 'Hollander' Weave,Plain Dutch Weave Twill Dutch Weave,Reverse Dutch Weave,Multiplex Weave.

Mesh Width:

 Standard less than 2000 mm

Mesh Length:

 30m rolls or cut to length, minimum 2m

Mesh Type:

 Rolls and sheets are available

​

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Advantages:

1. High open area/flow rate.

2. Closely controlled, accurate apertures.

3. Smooth surface - screening surface has no sharp edges, burrs or acute angles.

4. Very high-temperature tolerance (variable according to metal selected).

5. Usable under high pressure.

6. Flexible - ideal for forming rigid concave / convex shapes.

7. Control of chemical/acid/ corrosion resistance using different metals.

8. Special aperture requirements can be met without high tooling costs.

9. High durability.

10. Self-supporting.

Packing:

Woven wire mesh is available on the roll or cut to size.

Provide fine and strict packaging to ensure that the goods will not be damaged.

The usual packing is wooden case, or as costomized.
