Cement Pouring Formwork Structure Reinforced Concrete Foundation For Family Homes

Product Description

Product Specification

Product Advantages:

Easy placement, alignment, shoring and fixing of panels;

Easy creation of openings (doors and windows);

Easy insertion of rebar reinforcement (if necessary);

Easy placement of conduits for electrical and plumbing;

Easy visual inspection of the concrete pour;

Easy last minute changes;

Easy cladding or coating of any types of finishing.

Possibility to place the upper slab formwork before concreting the walls;

Possibility to pour all the walls of one complete floor in one pass;

Possibility to build non-repetitive constructions at low cost;

No need for anti-cracking welded wire;

No stripping or shutter rotation;

No need to place edge formwork.

Want to know more Product details?

Cement pouring formwork structure is a lightweight, structural stay-in-place formwork system used to build reinforced concrete walls. It is composed of two filtering grids made of rib lath and reinforced by C-profiles. The grids are attached to each other with articulated rebar connectors. Once Cement pouring formwork structure is secured I to the ground, concrete is poured inside. The excess water eliminates itself through the grids while the fluid concrete becomes semi-solid. The elimination of the excess water decreases pressure against the grids. Cement pouring formwork structure remains inside the structure and acts as reinforcement Cement pouring formwork structure constructions can e completed simply, rapidly a and cost : effectively with non- qualified labor.

Cement Pouring formwork structure COMPOSITION:

The two sides weight 11 kg/m2. It is composed of:

Rib Lath

Expanded metal with rib produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.5 mm thickness.

C-Profiles

Produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.6 mm thickness.

Connectors

Made from steel in coil grade B DIN 17 223 or equivalent.

20 mm width.

1.5mm thickness.

Longitudinal Rebar

Made from Fe 400 (French Norm) or equivalent.

500 N/mm2 elasticity limit.

700 N/mm2 traction strength.

5 mm diameter (minimum).

service :

We continually invest in most advanced design, production and testing techniques helping us to meet and exceed international quality standards across a number of industries such as mining, sieving, filtering, industry protection ,building architectural decoration,building construction, aviatio, petroleum.

Meeting our clients’ exacting wired mesh requirements is our ultimate goal and something we pride ourselves in.

Online Technical Support

Onsite Installation

Onsite Training

Onsite Inspection

Free Spare Parts

Return and Replacement

3D model design

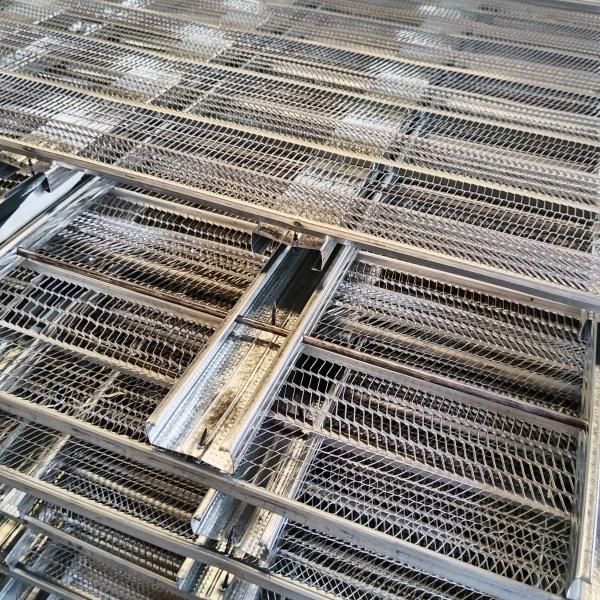

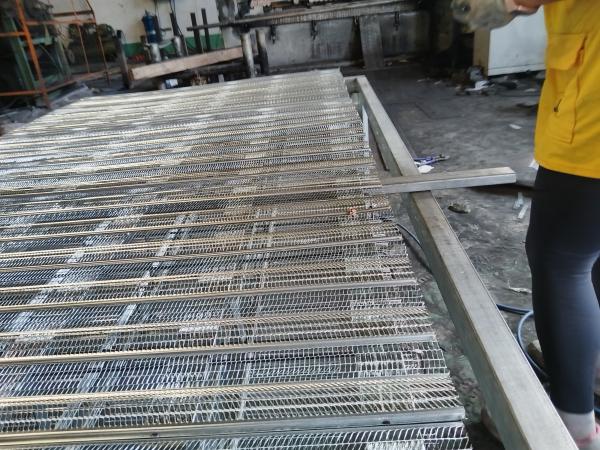

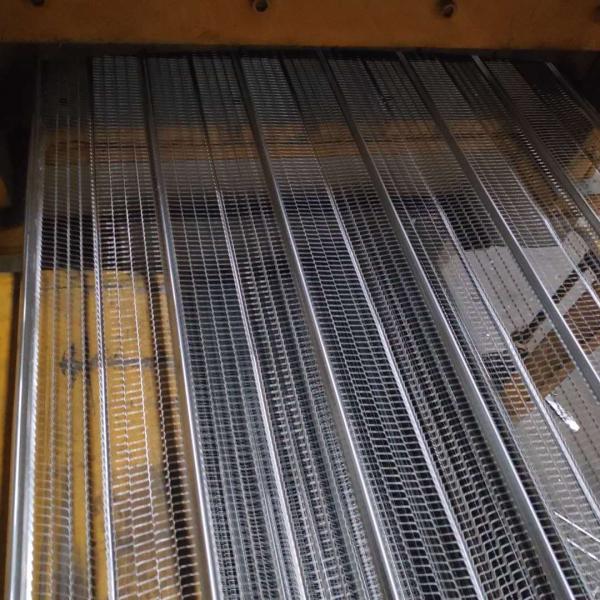

Show details pictures:
