High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
Specifications
Brand Name :
VELP
Model Number :
Stainless Steel Rope Wire Mesh-006
Certification :
SGS BV ISO
Place of Origin :
Hebei Province China
MOQ :
3sqm
Price :
USD4.5-USD5.8/sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000sqm/day
Delivery Time :
10-15days
Packaging Details :
wooden box
Name :
High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
Material :
SS304/316
Wire Diameter :
1.5mm/2mm/2.5mm
Mesh Opening :
25*25mm/30*30mm/50*50mm
Boundary Dimension :
1*10m/2*5m/2*3m/10*10m
Colour :
silver
Application :
protection rope mesh/zoo mesh/ balustrade mesh
Keyword :
flexible
Description

High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh

Woven Wire Rope Mesh Product Description

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

Woven Wire Rope Mesh Parameter

Material stainless steel wire 304 316
Rope diameter 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm 5.0mm
Mesh Opening 25*25mm/30*30mm/50*50mm60*60mm /80*80mm/ 90*90mm/ 120*120mm
Feature Flexibility,high strength,rust resistance,recyclable,maintenance free
Boundary Dimension 1*10m/2*5m/2*3m/10*10m

Woven Wire Rope Mesh Advantages

1. Good toughness,anti climb, shock resistance, not easy to deform,excellent cushioning.
2. Long service time,anti rust,structure strong,no need to maintain.
3. Beautiful, lucency, environment friendly.
4. Easy to install,light weight.
There's two kind installing way,wrapping installing,welding installing.
Usually we use wrapping installing.

Woven Wire Rope Mesh Applications

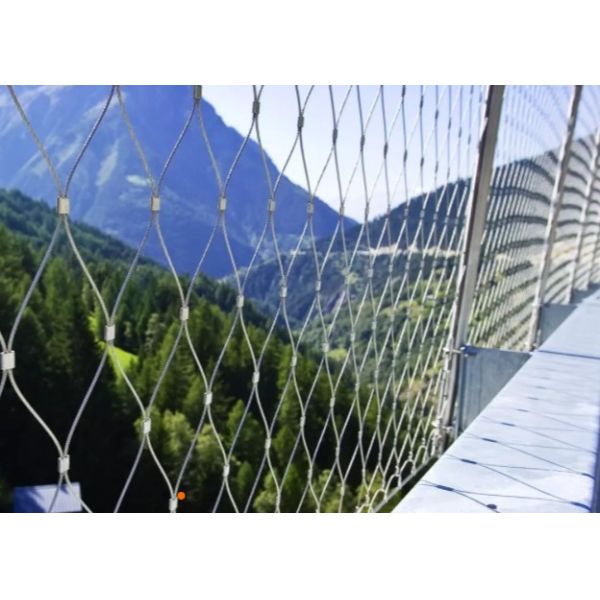

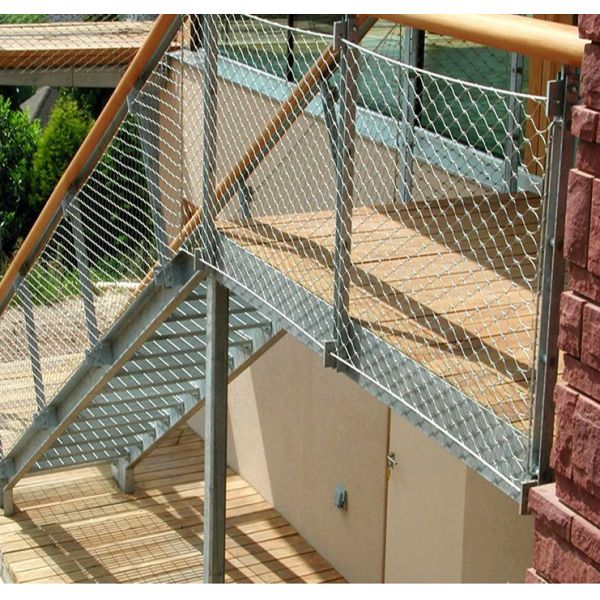

1.Steel Mesh Balustrade - bridge, stair, balcony, path
2.Cable Mesh - Excellent Solution to Safety
3.Safety Net - Structural Measure to Prevent Suicide
4.Helipad Safety Net - Modular Heliport Webbing
5.Cable Zoo Mesh - Solution to Enclosing Most Animals
6.Aviary Netting - Lightweight, Durable and Long Lasting
7.Green Facade - Cable System for Most Climbing Plants

High Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope MeshHigh Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope MeshHigh Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope MeshHigh Strength Diamond Ferrule Stainless Steel Cable Woven Wire Rope Mesh
