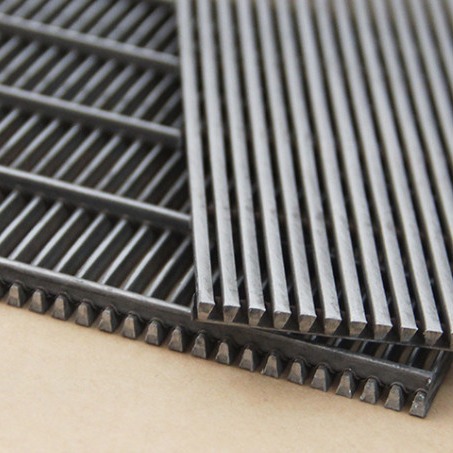

304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
Specifications
Model Number :
wedge wire screen 005
Feature :
High filtration accuracy
Supply Ability :
3000sqm/day
Name :
304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh
Support rod :
Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Material :
stainless steel 304/316
Support profile :
Flat,triangle wire,round wire,trapezoid wire
Price :
USD5.3-USD6.5/SQM
Wedge wire :
Width:1.5 mm 1.8mm 2.3mm etc. Height:2.2mm 2.5mm 2.7mm
MOQ :
2sqm
Delivery Time :
10-15days
Size :
can be customized
Place of Origin :
Hebei Province China
Packaging Details :
Iorn Pallet+safety belts or wooden box
Certification :
SGS,BV ISO
Brand Name :
VELP
Keywords :
alkali-resisting
Description

304 Stainless Steel Wedge Wire Mesh Screen V-Shaped Johnson Filter Mesh



Wedge wire screen Product Information


304 Stainless Steel Wedge Wire Mesh Screen, also known as V-Shaped Johnson Filter Mesh, is a precision-engineered filtration product designed for efficient solid-liquid separation and long-lasting performance in demanding industrial environments. Manufactured by resistance welding V-shaped profile wires onto support rods, this screen forms continuous slot openings that provide exceptional filtration accuracy while maintaining high mechanical strength.
The unique V-shaped wire structure creates slots that are wider on the inside than on the outside, allowing particles to pass smoothly without clogging the screen surface. This self-cleaning characteristic significantly reduces maintenance requirements and extends the operational life of the filter. Compared with conventional perforated plates or woven wire mesh, wedge wire screens offer superior flow capacity, lower pressure loss, and improved filtration efficiency.
The manufacturing process begins with high-quality stainless steel profile wires and support rods. Advanced resistance welding technology ensures every intersection is welded securely without additional filler materials, producing a strong and durable structure with consistent slot openings. Strict quality inspection guarantees precise slot tolerance, excellent flatness, and reliable mechanical performance.

Wedge wire screen Parameter


Material stainless steel 304/316
Wedge wire

Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm

Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm
Support rod

Width:2.3mm 3.0mm 3.3mm 3.7mm

Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm

Round : from 2.5mm---6.0mm
Support profile Flat,triangle wire,round wire,trapezoid wire
Size can be customized
Characteristics Strong solid structure,High open area, accurate slot dimensions

End Finishing:

Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc


Wedge wire screen Advantage


Made from premium SUS304 stainless steel, the wedge wire mesh screen provides excellent corrosion resistance, oxidation resistance, and wear resistance. It performs reliably in environments exposed to water, chemicals, oils, and various industrial fluids. The smooth surface and hygienic construction also make it suitable for food processing and beverage production where cleanliness is essential.


Wedge wire screen Application


304 stainless steel wedge wire mesh screens are widely used in water treatment plants, wastewater treatment systems, oil and gas filtration, mining, mineral processing, coal washing, pulp and paper production, food processing, sugar refining, breweries, pharmaceutical manufacturing, resin trapping, starch production, chemical processing, and many other industrial applications.


Packing


1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.



FAQ


Q1:Can i get a free samples?

A:Yes,we have free samples to be provided anytime.


Q2:What type of materials do you use for your products?

A:stainless steel.


Q3:Is there quality control on all production lines ?

A:Yes,all production line have adequate quality control.


Q4:What is your terms of payment ?

A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.


Q5:How about the delivery time ?

A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
