316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
Specifications
Model Number :
SS03
Material :
Stainless Steel Wire, Carbon steel, customized.
Payment Terms :
Western Union,T/T,L/C,D/A,D/P
Usage :
Chemical,oil/air filter,
Supply Ability :
1000PCS/WEEK
Length :
2m or 2.44m, customized
MOQ :
2pcs
Delivery Time :
5-8DAYS
Feature :
Corrosion Resistance, Durable, Acid resistance, long time usage
Sample :
available
Price :
USD20-200/PCS
Width :
1m or 1.22m, customized
Packaging Details :
WOODEN CASE +SAFETY BELT + PVC FILMS
Shape :
square,Can be cut into round or other shape, tube, curved
Certification :
SGS ISO9001
Application :
Filters, Screen,
Place of Origin :
CHINA
Surface treatment :
polish
Brand Name :
VELP
Product name :
wedge wire screen
Description
316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
High Efficiency Stainless Steel Wedge Wire Screens Product Overview

Wedge wire is a welded steel structure, primarily used for filtration, separation, and retention media. It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

High Efficiency Stainless Steel Wedge Wire Screens Product Specifications
Product Name Wedge Wire Mesh
Sheet Size 1m*2m, 2m*3m, Customized Sizes
Sheet Design Tube Design, Flat Sheet Design, Curved Sheet Design, Customized Special Sheets
Material Stainless Steel 304, Stainless Steel 316, Stainless Steel 201, Carbon Steel, Customized
Slot Size 0.2mm-5mm (Customized Based on Customer Demand)
Support Rod 2*3mm, 3*4mm, 6mm Round Rod, Customized
Usage Liquid Filtering, Solid Separation
Profile Wire Wedge Shape Width: 0.75mm, 1.0mm, 1.5mm; Height: 1.5mm, 2.0mm, 3.0mm
High Efficiency Stainless Steel Wedge Wire Screens Product Advantages
  • High quality steel for high strength
  • High filtering efficiency without clogging
  • Various types and sizes for choice
  • Corrosion and rust resistance
  • Easy installation and replacement
  • Durable and long service life
High Efficiency Stainless Steel Wedge Wire Screens Product Applications
  • Deinking stock washing
  • Intake structures of hydro plant
  • Pretreatment processing
  • Filter removal in starch industry for dewatering
  • Separating different grades of coal
Package & Delivery Information

Packaging: Each sheet is covered with plastic film, then packed in wooden pallets or cartons.

Delivery: By sea, air, or express (DHL, FedEx, UPS) according to customer's needs.

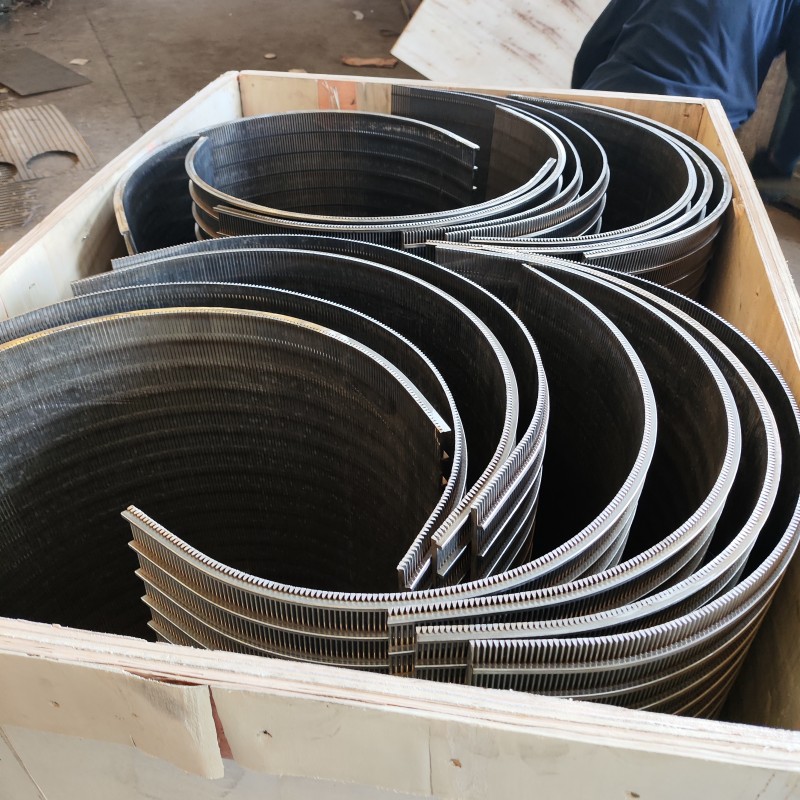

curved design

316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter

flat sheet

316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
Customization Services

We offer full customization service to meet your specific needs. Our factory is available for customized products including:

  • Different stainless steel materials (304, 316, etc.)
  • Various slot sizes and mesh dimensions
  • Different screen shapes (round, square, cylindrical, etc.)
  • Special designs according to your working conditions
  • Customized sizes and dimensions
  • Specific surface treatments if needed

If you have product drawing, please send us , we will check and back to you as soon as possible.

Frequently Asked Questions
Q: Will this filter rust?
A: No. This filter is made of stainless steel, it has good rust and corrosion resistance.
Q: Can I reuse this filter?
A: Yes, you can. It is made of solid metal mesh, just clean it after each use, and you can reuse it for many times. It is more eco-friendly.
Q: Can you make a filter that fits my special equipment?
A: Of course. We accept all kinds of custom requirements, just send us your size, shape and mesh requirements, we will produce a filter that fits your equipment perfectly.
Q: What is the minimum order for custom filters?
A: We accept small custom orders for personal use and small businesses, and also accept large bulk orders for factories. You can contact us to tell us your quantity, we will arrange production for you.
Q: Can this filter be used for hot liquid?
A: Yes. Stainless steel can resist high temperature, it can be in contact with hot water, hot oil and other hot liquids normally, no deformation or harmful substance release.
Product Gallery

Customized service, multiple styles to choose from,

supports customizing based on provided drawings,

designs display:

316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter 316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter 316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter 316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter 316 Stainless Steel Wedge Wire Screens High Efficiency Solid Separation Filter
