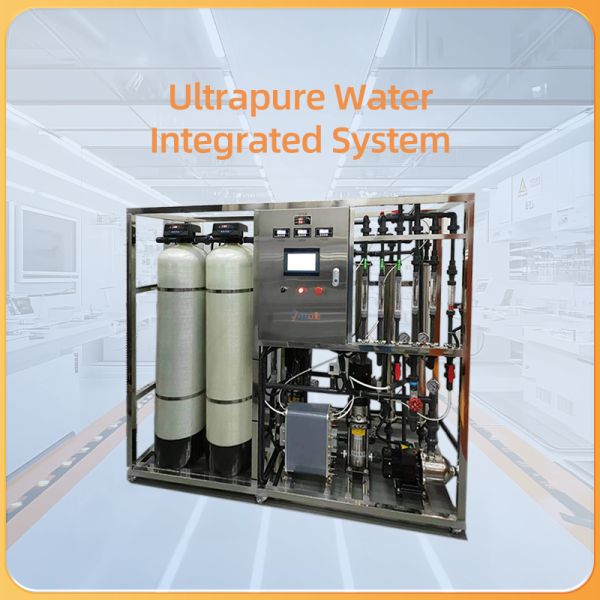

Ultrapure Water UPW Water Treatment Integrated System High Recovery Rate
Ultrapure Water UPW Water Treatment Integrated System High Recovery Rate
Specifications
Operating pressure :
0.2 to 0.6 MPa
Certifications :
ISO 9001, CE, RoHS
Flow rate :
Up to 1000 liters per hour
Power supply :
220 V/380 V, 50/60 Hz
Application :
Semiconductor manufacturing, pharmaceutical, and electronics industries
Water recovery rate :
Up to 75%
Control system :
PLC with touchscreen interface
Product name :
UPW Integrated System
Dimensions :
Customizable based on capacity
Material :
316L stainless steel and high-grade polymers
Purity level :
18.2 MΩ·cm resistivity
Maintenance interval :
Every 6 months or 5000 operating hours
System type :
Ultra Pure Water (UPW) Treatment
Model Number :
UPW integrated System
Place of Origin :
China
Brand Name :
Aquacells
Components included :
Pretreatment, reverse osmosis, UV sterilization, ultrafiltration, ion exchange, final filtration
Certification :
FDA，EU，CE，RoHS，REACH
Automation level :
Fully automated with remote monitoring
Description
UPW Integrated System With 90-95% Recovery >16MΩ*Cm Resistivity And 90-99% Silica Removal
Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 45 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water
*Voltage required depends on module size
The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
