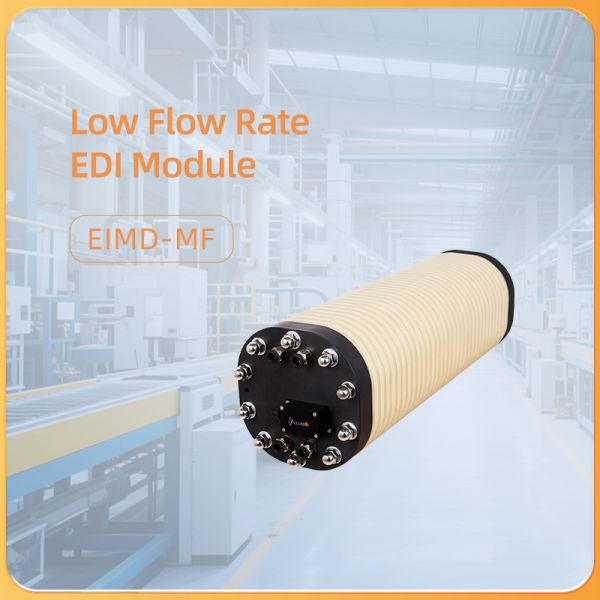

High Purity Water EDI Module With Continuous Electrodeionization 85-90% Recovery
High Purity Water EDI Module With Continuous Electrodeionization 85-90% Recovery
Specifications
Place of Origin :
China
Flow Rate Range :
0.1 to 10 mL/min
Material :
Stainless Steel
Power Supply :
12 V DC
Application :
Suitable for precise liquid delivery in laboratory and industrial processes
Operating Pressure :
Up to 5000 psi
Weight :
250 grams
Control Method :
Electronic control with digital interface
Compatibility :
Compatible with standard chromatography systems
Dimensions :
100 mm x 50 mm x 30 mm
Accuracy :
±1% of set flow rate
Temperature Range :
-20 °C to 80 °C
Warranty :
2 years
Brand Name :
Aquacells
Model Number :
EIMD-MF
Certification :
FDA，EU，CE，RoHS，REACH
Mounting Options :
Panel mount or bench mount
Connection Type :
1/16 inch fittings
Description
Aquacells EIMD-MF Series EDI Module For High Purity Water With Continuous Electrodeionization And 85-90% Recovery
Product Overview

Aquacells EIMD-MF Series modules are designed with proven continuous electrodeionization (EDI) technology. Performance on these modules has been optimized to produce high purity water for laboratory and smaller scale applications.

Feed Water Specifications
Parameter Specification
FCE (including CO2 and Silica) < 40 µS/cm
Temperature 5-45 ℃ (40-113 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Total Chlorine (as CI2) <0.05 ppm
Fe <0.01 ppm
Mn <0.01 ppm
S2- <0.01 ppm
pH 4-11
Total Hardness (as CaCO3) <1.0 ppm
Dissolved Organics (TOC as C) <0.5 ppm
Silica (SiO2) <1.0 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 85-90%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 45 ℃ (113 ℉)
Product Resistivity >16 MΩ·cm
Silica (SiO2) Removal 90-99% depending on feed water
The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
